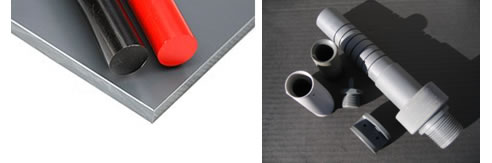

Rigid PVC Sheet, Rod and Tube from Allplastics Engineering
PVC (Polyvinyl Chloride (Rigid)
Allplastics supplies Rigid PVC Sheet, Rod and Tube. PVC has a very good resistance to many chemicals including concentrated acids, alkalis and alcohols. PVC has a good mechanical strength and can be easily machined, drilled, milled and tapped. Laser cutting is not recommended on PVC sheets due to the fumes released; however CNC routing can be achieved with no fumes. Moisture absorption of PVC is low and can be bonded to other surfaces by using general purpose epoxy resin.
Due to its anti-corrosive properties PVC is extensively used in the manufacture of chemical tanks, chrome plating and photographic development dishes. Industrial PVC is generally grey in colour, however, there is also White PVC sheets available in some thicknesses, as well as red PVC Rods.
For applications where transparency is important Allplastics can supply Clear PVC Sheets and Tubes. These are commonly used for fume cupboards, chemical sight glasses and chemical tanks. Allplastics will also provide custom extrusions in PVC for your large projects.
Service Temperature -15° to +60°
Key Features
- Good chemical resistance
- Good electrical insulation
- Easily thermoformed
- Good machining properties
- Low moisture absorption (0.2 %)
- Easy to bond and weld
Application
- Tank Linings
- Chemical apparatus
- Battery separators
- Insulators
- Pump parts
- Photographic development parts
Availability
Rod from 6mm Dia to 200 Dia
Sheet from 4.5mm Thick to 50mm Thick
Welding rods round and triangular
