Waterproof LED Strip Lights from HotBeam

waterproof led strip light

Flexible. Slimline. Ease of installation. High light output. Very long life.

The AquaRibbon Series is a family of flexible and high brightness LED strip lights. It has been designed for use outdoors and in interior damp/wet areas. Its small size, waterproof construction and extreme brightness, make it ideal for use in a wide range of applications.

The AquaRibbon produces a very bright, smooth light with no discernible hotspots. It can be used in water features; as navigation light in decking, railing and steps; as feature or task lighting in bathrooms and kitchens; and many other indoor and outdoor situations.

The AquaRibbon HBI3-180BWR consumes less than 12 watts of power per 3 metre length and is available in warm white, cool white and a range of other colours. The AquaRibbon uses high brightness SMD LEDs as its light source and it can be powered from our IP66 EDMC Series LED Drivers.

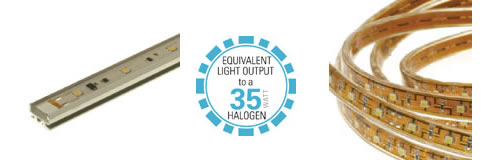

One meter of the HBLL-6WR produces light equivalent to a 35w halogen lamp.

Installation

The HBI3-180WR AquaRibbon may be cut once along the length of the body to fit into installations if necessary. Cutting marks are printed on the ribbon and must be adhered to. The smallest workable segment of the Ribbon is 50mm long and contains 3 LEDs.

The HBI3-180WR may be curved around large radii provided the force does not strain the PCB. The AquaRibbon should be secured down immediately to avoid cyclic fatigue and breakage.

The HBLL-6WR AquaRibbon can be easily mounted onto a surface by first screwing the mounting clips into place and then clipping the extrusion into place. Alternately, the HBLL-6WR extrusion may be mechanically fastened into niches and recesses.

Features

- Flexible PCB ribbon construction (HBI3-180BWR) or rigid lengths (HBLL-6WR)
- High brightness
- Over 630 lumens of light per meter for 6300k HBLL-6WR
- Models:
- Flexible (HBI3-180BWR) - uses 4w per meter
- Rigid (HBLL-6WR) - uses 19w per meter
- Small linear form factor
- Very long expected life, over 50,000 hrs
- Available in warm white, cool white and a range of other colours
- Powers from our IP66 water-resistant EDMC Series LED Drivers
- Rigid (HBLL-6WR) Conveniently sized extrusions - 530mm, 1050mm, 1730mm
- Indoor and outdoor use
- UV treated
- Waterproof structure
- IP65 or IP67 connectors
- 2 year limited warranty
