Base Acoustic Barrier from NuWave™ by Thermotec Australia

acoustic barrier

NuWave™ High Performance Flexible Noise Barrier

The heart of the NuWave range is the dense polymer technology that has been proven to reduce noise in heavy industrial plants. We have taken this technology and applied it to many of our products but the two most common are NuWave "Base" and NuWave "4Zero".

NuWave™ "Base"

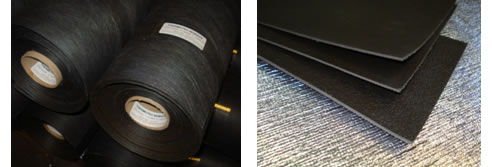

Most commonly used to silence noise in walls, timber floors and ceiling spaces, particularly over office partitions in commercial buildings. NuWave Base is inexpensive and very easy to cut and install. Fabric backed, embossed face, it is tear resistant, highly flexible and is supplied in rolls.

ROLL SIZES AND ACOUSTIC RATINGS
(all 1350mm nom.width):

  • 4kg/m2 5 mtr rolls Rw 26*
  • 6kg/m2 3 mtr rolls Rw 29*
  • 8kg/m2 3 mtr rolls Rw 30*

*Rw rating is a single number quantity summarizing the transmission loss of a material over the frequency range from 100Hz to 3.15 kHz under AS/NZS 1276.1:1999. Independent test reports available.

NuWave "4Zero"™

NuWave's 4-Zero barrier is the same as the "Base" product but with a flexible aluminium film facing. The aluminium facing gives the barrier excellent fire resistant properties when tested to AS 1530.3. This additional flammability rating is important in some applications in buildings and the foil facing also allows reinforced foil tapes to be used to join two pieces of 4Zero together when overlapped. Roll Sizes and acoustic ratings as for "Base" above.
