Shallow Linear Trench Drain SlabDrain and Heelsafe Grates from ACO

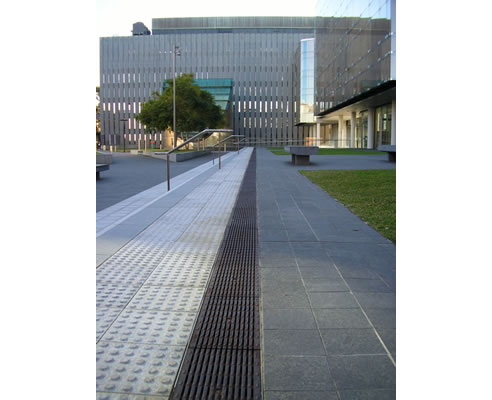

slabdrain and iron heelsafe grate at sydney university

Sydney University Law Building

Sydney University recently undertook a design competition for its new Law School building. Reconnecting the campus to Victoria Park, a key requirement of the brief, meant designers needed to efficiently drain multiple levels of pavements. Consideration was also to be given to minimising excavation.

ACO's SlabDrain with overall depth 130mm was specified. A shallow linear trench drain to compliment the designers need to keep walking surfaces flat whilst keeping the drainage function close to the surface. This minimised excessive pipework and associated earthworks.

Iron Heelsafe® Anti-Slip grates (rated to AS 4586) were also selected as they were strong enough for service trucks and safe for women with high heels.

Product Details
Specifier: fjmt (Francis-Jones Morehan Thorp)
Product featured: SlabDrain H200K with Iron Intercept Heelsafe® Anti-Slip grates
Other ACO products used in this project: Other ACO Drain® trench drain systems

For more product info, visit www.acodrain.com.au
