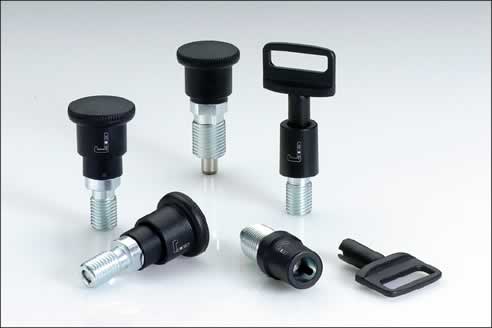

Ganter locking plungers from D & D Barry
Ganter of Furtwangen now offers locking plungers with and without safety variant.
Two designs are available, both available with or without key operation. If inoperative, the locking
pin in the GN 816 locking plunger protrudes. To retract, it is moved against the spring force and held
in the end position by a 90° turn. If inoperative, the locking pin in the GN 816.1 locking plunger is
retracted. To move out, it is also pushed against the spring force and held in the end position by a
90° turn.
The specially designed guide cam secures the locking pin in both design versions against inadvertent
resetting. The guide (threaded section) of the locking plunger is made of zinc-plated blue chromated
steel, while the locking pin and the pressure spring are made of stainless steel. The mat black head
and the cover sleeve are made of plastic (thermoplastic - polyamide PA) and are not detachable.
A key (GN 816-10 or GN 816.1-10) is required to move the locking pin in the locking plungers with
safety variant. In addition, the cover sleeve prevents the unauthorised turning out of the locking
plunger and also prevents malfunctions caused by dirt.
