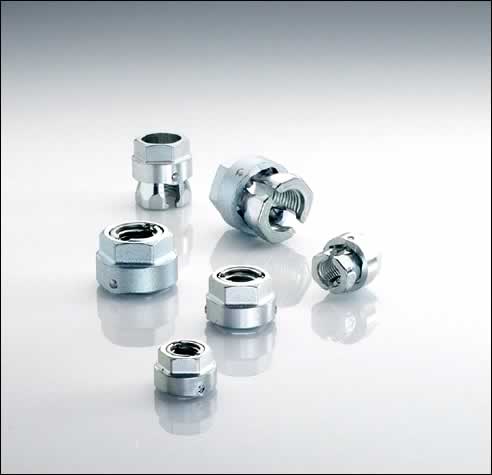

Ganter quick-action hexagonal nuts from D & D Barry
Ganter of Furtwangen now also have quick-action hexagonal nuts in their product
portfolio. They are used in applications where a threaded nut needs to be brought quickly into
the clamping position or needs to be pulled off just as quickly. A damaged thread is no problem,
as the defective section of the thread can be simply skipped. The GN 6333 quick-action hexagonal
nuts are currently available in the sizes M 14 to M 24, made of forged steel of strength class 10.
The surface is zinc-plated. The GN 6333 quick-action hexagonal nuts have been specially designed for
rapid mounting and dismantling in tight spaces, and they are not impaired in their function by damaged
or soiled screw threads.
They provide a secure and very tight connection and can be reused after loosening the self-locking
mechanism. A standard spanner is sufficient for mounting, no special tools are required.
The quick way to mount! Push the quick-action hexagonal nut over a thread. After pressing on the outer
sleeve (locking the nut) and an additional half turn, the nut sits firmly in its end position.
The quick way to dismantle! First loosen the quick-action hexagonal nut slightly and then pull back
the outer sleeve (unlocking the nut) and pull off.
Find out more at www.ganter-griff.com.
