Door Frame Fixings from Taylors Doors & Frames

door frame fixing

Frame Fixings - Non Rated Profiles

If the frames are non rated the following frame fixing may be used:

  • Wire Ties for throats up to 150mm
  • Block Ties for throats over 150mm
  • Stud Clips for stud frames (16 per set)
  • Strap Fixing for stud frames - channel welded into back of throat
  • Partition (with fins or flange) for stud frames
  • Countersunk holes for retro fit (fitting into existing openings)
  • Tube Fixing same as countersunk with tubes welded to back
  • TDF Snap Strap Fixing new innovative, environmentally friendly corrosion resistant NO WELDING STRAP

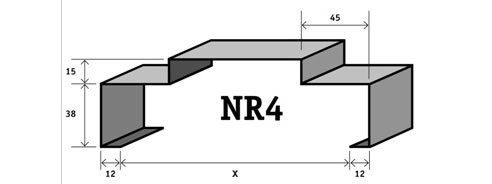

Standard Non Rated (NR) Profiles

Frame Code
Standard sizes - NR (X) or NR4 (X) mm

NR - 86
NR - 93
NR - 102
NR - 114
NR - 123
NR - 145
NR - 152
NR - 193

  • 1.1mm zincanneal steel.
  • Rebate to suit doors up to 35mm thick.
  • Throat dimension 'X' is variable to suit wall thickness.
  • Heavy duty 100mm x 75mm loose pin zinc coated hinges.
  • 1 universal striker
  • 1 x Set wire ties
  • Ramset Fee

non rated profile
