Metro Drinking Fountains from Stoddart Manufacturing

expo design build

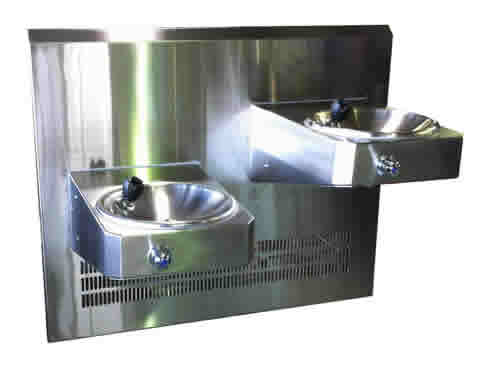

Drinking Fountain Metro Dual - Chilled Wall Mounted

Drinking Fountains for Schools, Shopping malls, Airports and outdoor areas made by Stoddart are branded Metro.

Metro Drinking Fountains provide clean fresh chilled drinking water through a safe hygienic drinking bubbler.

The Stoddart Refrigerated Metro Dual Wall Mounted Drinking Fountain is wall mounted on a robust stainless steel hinged frame and mounting panel and has large front mounted, easy push buttons. It also allows clear access for wheelchair disabled users when mounted at the correct height.

It is robust, vandal resistant and easy to install, maintain and use. The Plumbing is secured and accessed via a large access panel under the Bubblers and hinged main wall panel.

Features and Benefits:

  • Easy-Push buttons & valves supply a regulated flow of fresh clean chilled drinking water through the safe & hygienic drinking bubblers to make drinking access easy without water wastage.
  • Large round collection bowl prevents excess water from forming mud puddles on the ground.
  • Excess water is drained & can be connected to a rubble pit, a nearby garden bed or, it can be connected to grey water.
  • Wall Mounted Drinking Fountain can be easily mounted to most wall surfaces at heights suitable to the application.
  • Access for wheel chair disabled users is provided as per the requirements advised in AS1428.2
  • This unit is configured with a vented wall panel for the chilled water unit as fitted.

Specifications:

Construction:
Stainless Steel construction, no 4 satin finish. Unit is pre plumbed with button and bubbler.

Water Supply:
15mm (1/2" BSP).

Waste Connection:
40mm waste connection to Tundish. Excess water can be drained to a rubble pit, a nearby garden or, it can be connected to grey water.

Unit Fixing:
The unit is supplied with a stainless steel hinged wall frame and mounting panel. Access panels under bubblers provide secured access to plumbing.

Disabled Access:
Fixing height for the Disable Access Code AS 1428.2 is 700mm from the top of unit to finished floor level.
