Discrete Surface Drainage with Brickslot from ACO

discrete surface drainage system for paved area

WA Athletics Stadium, Perth

The new Western Australia Athletics Stadium at AK reserve is a 10,000 capacity world class venue featuring a 2000 seat grandstand. Designers selected large square pavers for the hardstand area behind the grandstand where a discrete surface drainage system would be required.

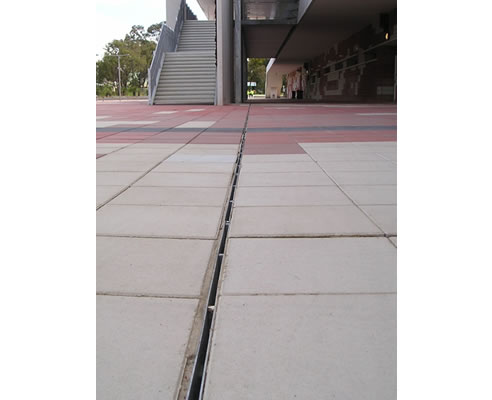

ACO's AS 1428.2 compliant Brickslot was therefore specified. Brickslot is an unobtrusive drainage system with a slotted frame. The linear trench drain was purposefully positioned in line with the paving grid to allow for visual continuity of the pavement. The sloped nature of the underlying Polycrete® Channels provides efficient drainage as well as direct the captured stormwater towards the nominated outlets along the run.

brickslot from aco

Product Details
Specifier: Cox Howlett & Bailey Woodland
Product featured: Brickslot
Other ACO products used in this project: ACO Sport & ACO Drain® grated trench drains & ACO Cablemate® trafficable cable enclosures
