Threaded Anchor Points Kwik-Twist from CRH Australia

threaded anchor points kwik twists

Kwik-Twist

When preparing to suspend equipment, ductwork or accessories, threaded anchor points are often required. Kwik-Twists from Rize are side or vertical mounted fasteners that provide attachment points for steel threaded rods and other assemblies.

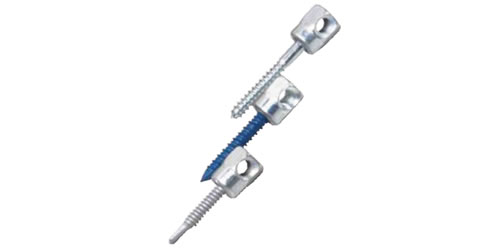

There are three variations of Kwik-Twists; one for penetrating and threading into steel, one for wood, and one for concrete. Each Kwik-Twist has a 3/8"-16 threaded hole in the fastener's hex shaped head. Side mounted Kwik-Twists have the threaded hole perpendicular to the fastener shaft and passing completely through the fastener head. Vertical mounted Kwik-Twists have the threaded hole parallel to the fastener shaft and as deep as the fastener head.

- No pilot hole is needed for wood or steel Kwik-Twists; a 1/4" pilot hole is required for concrete

- Drill bit is included with concrete Kwik-Twists

- All fasteners are zinc plated for corrosion resistance
