Pedestrian bridges from Australian Polycarbonate Products for Holmesglen Institute of TAFE

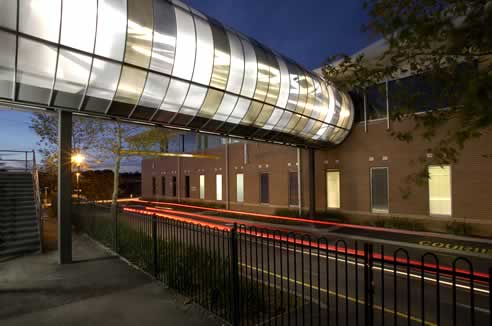

This project required the connection of 4 existing student and administration buildings, across an existing road, by way of 2 new pedestrian bridges. The design aimed to create a weatherproof link, with a tempered internal environment, utilising a contemporary material that contrasted with the brick and colourbond of the existing buildings. The design required a cladding material with a level of translucency, to reduce the requirement for daytime lighting. On selecting Danpalon for these properties, the design aimed to utilise the materials inherent properties to their full extent. Danpalon's translucency allowed the use of internal lighting to provide a night time presence, with the bridges acting as beacons on campus. The Danpalon does not join at the underside of the bridge, providing natural ventilation, and allowing the bridges to be washed clean on the inside, without any water pooling. The product selected was a single skin of 12000mm long Danpalon 8mm Multicell Polycarbonate, with an additional UV coating applied to the exterior face, in 'Clear', 'Bronze' and 'Reflective
For further information contact:
Australian Polycarbonate Prod
Address: Unit 3/58 Dougharty Road, Heidelberg Heights, Vic, 3081
Phone: 03 9459 4....
Fax: 03 9549 8....
Web: www.austpolyproducts.com.au
|
