Hydronic Radiant Floor Heating & Cooling from Hunt Heating
HIGH PERFORMANCE AND DESIGN
Underfloor heating and cooling
is a clean, safe and zero-allergen
central system with extremely

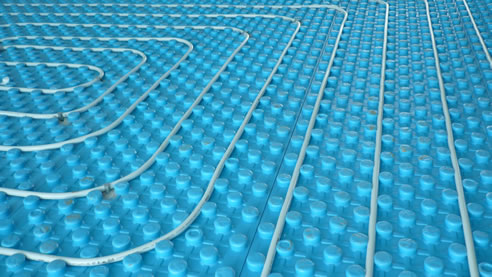

low maintenance costs. Water
is circulated through a network
of highest quality Hunt Heating
pipe laid in the floor slab. The
system operates at low water
temperatures reducing operating
cost to a minimum.
The floor slab transforms into
a slow release heat/ cool bank
providing uniform temperature
throughout. Underfloor radiant
systems are almost aligned with
the "optimum heating/ cooling
curve" as defined by the HVAC
industry.
Manifold system features
- Compact in design
- Up to 12 circuits per manifold
- Control valves for every circuit
- Built in flow meters
- Right or left hand connectors
- Air bleeders included
- Isolating valves included
- Fill/ drain valves included
- Temperature gauges included
- Electronic heads available
- Pipe centres set at 50 mm
PIPE (PEX)
- Manufactured / Tested to DIN 16894/ DIN 4726
- Oxygen barrier protection
- 16 mm diameter x 2 mm wall
- 200 m coil length
- Temperature range: -20 ° C + 95 ° c
- Continuous operating temperature max: 70 ° at 8 bar
- Made in Germany
- Zoning control available
For further information contact:
Hydronic Systems Aus P/L T/A Hunt Heating
Address: 11 Fiveways Blvd, Keysborough, Vic, 3173
Phone: 1300 001 8...
Fax: 03 9798 5....
Web: www.huntheat.com.au
|
