Kaba Electric Strikes and Electromagnetic Locks

Kaba offers leading technological solutions for mechanical, mechatronic and electronic security applications. We offer a range of electric strike and electromagnetic locks for use in projects or for installers of electronic access control solutions.

Electric Strikes

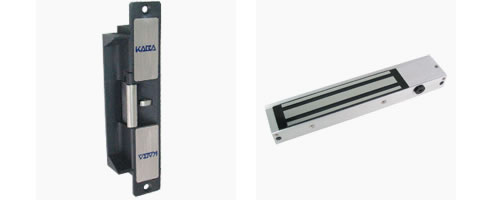

The KES2200 fully monitored electric strike is a high security product offering switch monitoring of latch and strike, variable voltage from 12VDC/AC to 28VDC/AC, and a field changeable fail safe / fail secure function. The KES2200 has a 2 hour fire rating and is CE certified and C-Tick approved. Dimensions: 175L x 44W x 27Dmm.

The KES200Z non-monitored electric strike is an economical product, designed for use with a large selection of mortice, key-in-knob and key-in-lever type locks in both timber and metal frames. The KES200Z offers variable voltage from 12VAC/DC to 28VAC/DC as well as a fast and convenient interchangeable fail safe/ fail secure function (changeable on site) and is CE certified. Dimensions: 175L x 44W x 27Dmm.

The KES1100 non-monitored ANSI sized electric strike is CE and C-Tick approved. It offers dual voltage as standard (12/24V) and has an interchangeable fail safe / fail secure feature. This economical unit suits a large selection of mortice style locks and is suitable for all types of wooden, steel and aluminium door frames. Dimensions: 124L x 43.5W x 41Dmm (short face plate), 202L x 43.5W x 41Dmm (long face place).

For rim mounted locks, the equivalent KES1500 should be used. Dimensions: 60L x 86W x 28.5Dmm.

Electromagnetic Locks
The KML-2 is a mortised type electromagnetic lock which can be used on single, sliding, double mounted and mortised type doors. It has a holding force of 270kgs and dual voltage with both lock and door sensor. The KML-2 features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved. Dimensions: 250L x 47W x 25Dmm. The KML-2H electromagnetic lock can be used on single or surface mounted doors. It has a holding force of 270kgs and has dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and an LED Monitor. It is C-Tick, UL Listed and CE approved, with a 2 hour fire rating. Dimensions: 250L x 47W x 25Dmm.

The KML-6 electromagnetic lock can be used on single or surface mounted doors. It has a holding force of 540kgs and has dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved, with a 2 hour fire rating. Dimensions: 266L x 73W x 40Dmm.

The KML-10 electromagnetic lock can be used on single or surface mounted doors. It has a holding force of 540kgs and has dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor is C-Tick, UL Listed and CE approved, with a 2 hour fire rating. Dimensions: 532L x 73W x 40Dmm.

The KML-CCW30 electromagnetic lock can be used on single or surface mounted doors. It has a holding force of 135kgs and has dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is C-Tick, UL Listed and CE approved, with a 2 hour fire rating. Dimensions: 165L x 38.5W x 21Dmm.

The KML-CCW30F is a mortised type electromagnetic lock which can be used on single, sliding, mortised type or double action doors. It has a holding force of 135kgs and has dual voltage with both lock and door sensor. It also features a built-in voltage spike suppressor and is UL Listed and CE approved. Dimensions: 202L x 34.5W x 21Dmm.

The KML-5000G electromagnetic gate lock can be used on single, surface mounted or sliding doors. It has a holding force of 540kgs and has dual voltage with lock sensor. It also features a built-in voltage spike suppressor is C-Tick, UL Listed and CE approved. Dimensions: 203L x 63W x 40Dmm.
