Show Kitchen Ventilation from Halton by Stoddart Manufacturing

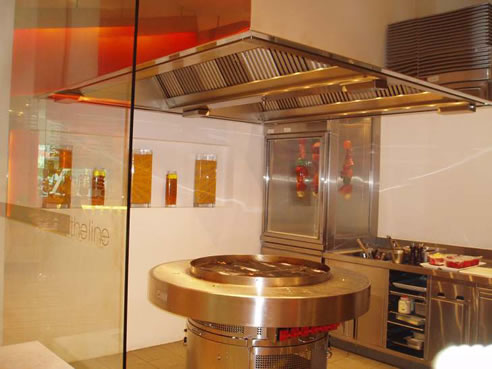

show kitchen ventilation

Interior design is one of the key components of the success of a restaurant. Kitchen ventilation equipment becomes part of the interior design.

When heavy cooking equipment is installed (grills, char broilers, satay grill, charcoal grill, Teppanyaki table, teriyaki grill, etc...), a large amount of smoke can be generated in a very short time. What is most important is that your guests can enjoy the cooking display without being disturbed by cooking emissions, odours or a haze of smoke.

Halton high-efficiency Capture Jet canopies maintain efficient exhaust of heat and impurities. The vertical stream of CaptureJet air provides the effective capture of an emission closer to the cooking equipment & reduces the effect of draughts with the horizontal stream ensuring smoke and steam roll into the efficient filters. Impurities and grease particles are then separated from the exhaust air via the cyclone separation principle. A highly efficient system, such as the Halton Capture Jet canopy, allows the canopy to operate with up to 30% lower exhaust flows than traditional hoods.

For dining areas where it is not possible to provide exhaust to the ceiling and heavy-duty equipment is being used, the Halton Downdraught unit provides a tailored solution.

Downdraught Ventilation includes the best technologies developed by Halton including:

  • Double high-efficiency Capture Jet technology to sweep the thermal loads and pollutants toward the filters
  • A double stage of stainless steel Model KSA 'multi-cyclone' high-efficiency grease filters (ULand NSF-classified)
  • Double-skin construction with fire-rated thermal insulation material to reduce the radiation and improve thermal comfort
  • Air curtain systems to reduce customer and staff exposure to impurities and improved capture efficiency

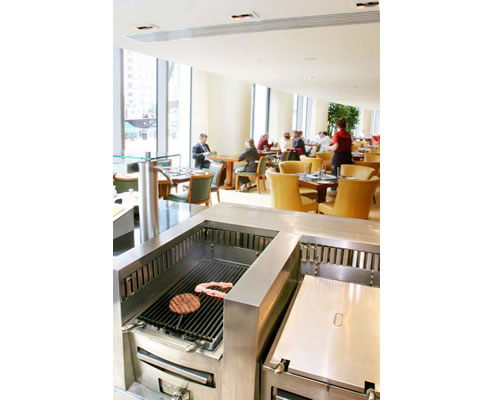

halton downdraught unit

The Downdraught is highly efficient even with heavy-duty cooking equipment such as char broilers and can replace a standard exhaust hood installed at ceiling level with the added benefit of improving the aesthetics of a show kitchen.

For more information, contact Stoddart.
