Heavy duty industrial gate drive openers by ASSA ABLOY Entrance Systems

If you are looking for a high quality, super reliable, industrial gate drive solution the IGD 550 and 750 ranges fit the mark, priced competitively in comparison to any electric gate operator which meets there features and durability. As an Australian made product, all parts and support are readily available.

A quality solution for intensive or industrial applications, where continuous uninterrupted operation is paramount.

Features

• Laser cut 6mm and 10mm steel zinc plated or hot dipped galvanised chassis.
• Cast iron industrial quality gearbox.
• Industrial grade motor with inverter rated windings.
• Strong galvanised steel powder coated or stainless steel covers.
• Mounting plate provided.
• Unique mechanical torque limiter to protect personnel and property.
• Easy disconnect facility.
• Option of Combined Inverter/PLC controls which do not require limits or ATA CB6 controls and easy set limits.

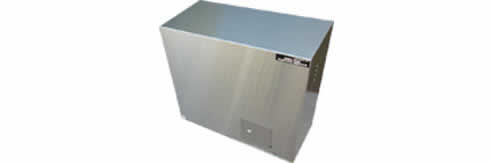

• Option of Separate IP66 steel (or stainless steel) electronic control enclosure or inbuilt controls under the main cover.
• All controls and Inverter are prewired and programmed.

All automation applications require external photo electric cell protection/induction loop and appropriate warning signs and/or devices.
