Hydronic Pipe Template Board from Hunt Heating
Pipe Positioning Board
is a polystyrene based insulation and
hydronic pipe template in one easy to
install product.
Because each panel interlocks with its
neighbor Pipe Positioning Board gives
you a seamless finish and a strong base with
which to start your project. Your pipe simply
pushes into place between the specially
designed grip lugs, holding it firmly in place.
Pipe Positioning Board
Is not visible once installed, does not
use up valuable wall space, and is
particularly effective in public areas as
there are no exposed or sharp surfaces
which can be unattractive, as well as
dangerous.
PRODUCT INFORMATION
| Panel size |
1200mm x 800mm x 55mm |
| Concrete Screed |
*20-50mm cover on top of Pipe |
| Material Grade |
Flame Retardant Expanded Polystyrene |
| Density |
30 kg/m3 |
| Compressive Stress |
160kPa @ 10% deformation |
| Cross Breaking Strength |
260 kPa minimum |
| Max. Contact Temperature |
70°C° |
| Hydronic Pipe Supported |
16mm, 18mm and 20mm O.D. |
| Panel Jointing |
10mm over lock on all sides |
| Cutting Tools |
Hand Knife, Handsaw or Hot Knife |
| Thermal Resistance |
R Value= 1.00 |
| Screed Thickness |
Minimum 20mm from top of Pipe Positioning Board |
* Depending on floor covering over screed

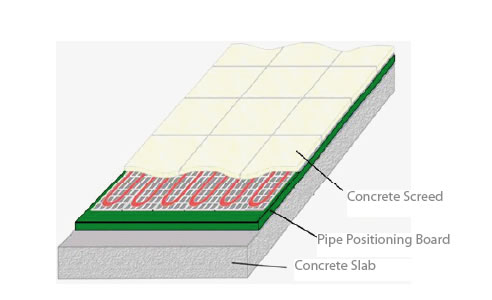

The panel is made from expanded polystyrene combined with a HIPS film, which is added in the
final stages of the moulding process. Along with fantastic insulating properties Pipe Positioning
Board is light yet durable product which holds hydronic piping in place over existing base flooring.
A concrete screed is then laid over the panel and pipe. Climate control is achieved by circulating
heated or cooled water through the piping, to help keep a consistently comfortable environment.
