In-Floor Pool Cleaning System from Waterco
Pool owner friendly in-floor cleaning system
saves you time, lowers energy and maintenance costs
Waterco's Blue Square in-floor system cleans the entire pool, even while you swim
Waterco's Blue Square Q360 in-floor pool cleaning system's revolutionary valve design has less moving parts, propelling water more effectively through the system. This simplified yet advanced design ensures the maximum possible flow rate to the in-floor cleaning jets with minimal restriction and back pressure.
"This is an in-floor cleaning system which has been aerospace engineered to provide an effective and efficient clean of the whole pool," says Adam Shelley from Waterco. "It's designed for maximum flow rate and to enhance circulation and evenly distribute water, which is great for heated pools in cool climates. Not only that, overall energy savings are enhanced."
Key features of Waterco's revolutionary Q360 In-Floor Cleaning System include:
- Robust, aerospace engineering
- Non-corroding fabrication
- Gear-driven simplicity
- Glass reinforced moulded construction resistant to saltwater and pool chemicals

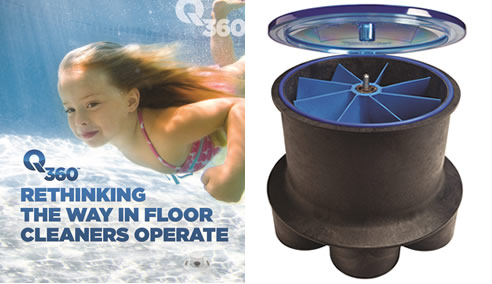

- See-through lid design allows for inspection of turbine and gears without the need for disassembly
- 360° rotating jets evenly distribute cleaning power and increase circulation of pool water
- Maximises energy efficiency through improved circulation
- Innovative pressure-safe valve design protects the system by ensuring that one port is always open
- Large 50mm PVC pipe inlet and six 50mm PVC pipe outlet ports maximise flow rate

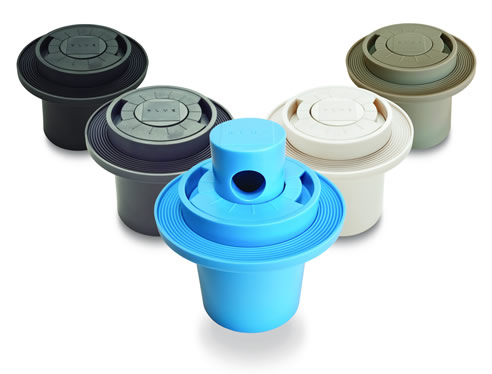

Q360 cleaning jets
The system includes 360° 14 point rotation in-floor mounted cleaning jets which rise successively to sweep debris from the pool floor and steps, becoming virtually invisible when it lowers to flush when finished. The 360° rotating jets evenly distribute cleaning power and increase the circulation of your pool water.
Available in three nozzle sizes: High Flow (floor jet), Low Flow (step jet) and Dual Flow (dual port option), the cleaning jets come in five colour choices to allow pool owners the flexibility to coordinate with their pool's finish. Replacement heads are easy to remove and install.
Features of Q360 Cleaning Jet Collars:
- Collars for concrete, fiberglass and vinyl pool types
- Tapered collar glues inside 2 inch Schedule 40 PVC pipe
- Protective plastering cap included
- Water-tight plaster ring prevents leakage
|
