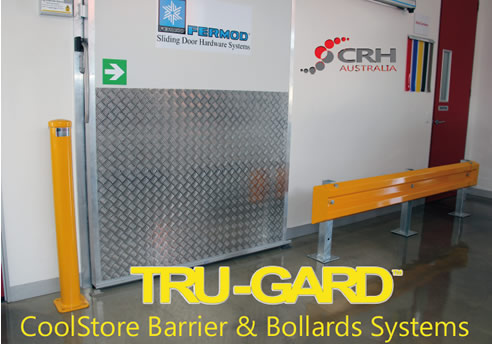

CoolStore Barrier & Bollards System Tru-Gard™ from CRH Australia

cool room barrier tru-gard

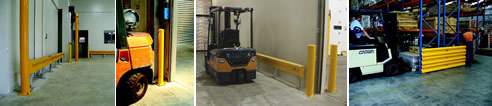

Tru-Gard Barrier is a certified barrier system that offers exceptional protection against impact damage to your buildings and assets. Initially designed for protecting Coolstore panel walls, which are often vulnerable to fork truck damage where repairs costing thousands of dollars are not uncommon. The installation of Tru-Gard Barrier has proven to be a cost effective preventative solution by many Coolstores and food processing factories throughout Australia & New Zealand.

The complete system, when installed to the manufacturer's specification is certified to stop a total mass of 4 metric tonnes moving at a speed of 3.5km/hr at 90 degress to the barrier. The extensive range of components available makes this an ideal option in many situations where protection is required. The barrier rail itself is made ex Zincalume coated 2mm thick mild steel and has a high quality "safety yellow" powder coated finish, which acts as a visible obstruction as well as a physical obstacle.

tru-gard barrier configurations

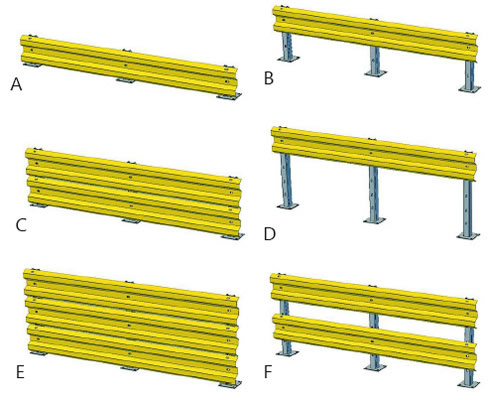

Configurations
A= 310mm High 1 Barrier Rail B= 610mm High, 1 Barrier Rail
C= 610mm High, 2 Barrier Rail D= 910mm High, 1 Barrier Rail
E= 910mm High, 3 Barrier Rail F= 910mm High, 2 Barrier Rail

cool room barrier tru-gard

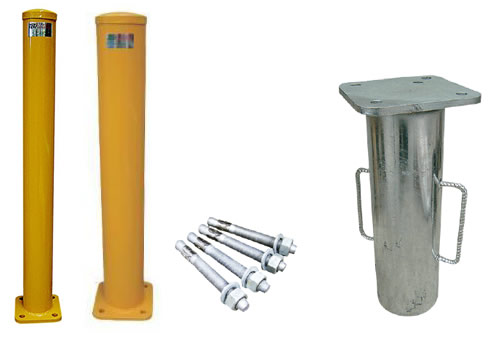

Standard Yellow Bollards
- Safety Yellow Finish
- 1000mm tall
- 115mm Dia
- 3.5mm wall
- 180mm x 180mm x 12mm base plate
- Domed Aluminium cap
- 15.5kg
- 4 x M16x 140 galvanised wedge anchors included
CODE SB115Y

Large Yellow Bollards
- Safety Yellow Finish
- 1000mm tall
- 115mm Dia
- 3.5mm wall
- 240mm x 240mm x 12mm base plate
- Domed Aluminium cap
- 24.0 kg
- 4 x M16x 140 galvanised wedge anchors included
CODE LB165Y

Large Ground Mount
- 550mm tall
- 165mm Dia
- 4 x M16x 140 galvanised wedge anchors included
CODE LB165-GM

Call 1300 274 287 for a quote on your next project or view the complete range at www.crh.com.au
