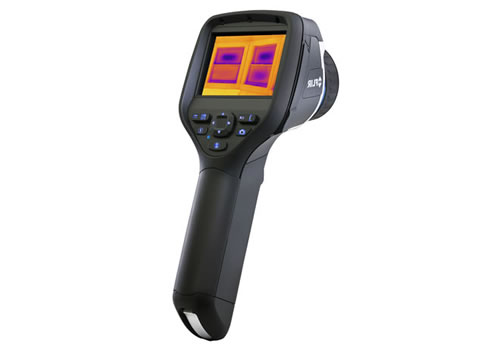

E30bx Thermal Image Camera from FLIR Systems

FLIR Systems launches new FLIR E30bx

Visual camera integrated and extended temperature range

After the successful introduction of the FLIR Ebx-Series in 2011, FLIR Systems is now launching an improved model of the FLIR Ebx-Series entry model: FLIR E30bx.

Visual camera incorporated

The new FLIR E30bx is now equipped with a visual camera. A visual image is often used as a reference against the thermal image. It clearly shows the people that need to do the actual repair where the problem is exactly located.

The visual camera produces 2 Megapixel images.

By pressing only one button the camera stores the thermal image and the visual image simultaneously. A LED-lamp installed on the front of the camera assures that good quality visual images can also be taken in darker environments. Just like all FLIR Ebx-Series, the FLIR E30bx is equipped with a laser pointer that will help the user to associate the hot spot on the thermal image with the real physical target in the field. Especially for the building professional all versions of the FLIR Ebx-Series include moisture and insulations alarms.

Temperature range

The FLIR E30bx is equipped with a state-of-the-art uncooled Vanadium Oxide microbolometer detector that produces clear thermal images of 160 x 120 pixels. Temperature differences as small as 0.1°C become clearly visible on a crisp thermal image.

The FLIR E30bx can measure temperatures between -20°C and +120°C.

Rugged and easy-to-use

The FLIR E30bx is rugged to face everyday use in the most harsh environments. The vital inner core is well protected (IP54 rated). Extremely easy-to-use, all buttons for controlling the FLIR E30bx are right underneath your fingertips. The large 3.5" LCD touchscreen shows clear thermal images and allows access to all camera features.

FLIR Tools included

Every FLIR Ebx-Series thermal imaging camera comes with FLIR Tools software.

FLIR Tools allows to import thermal images directly from the FLIR Ebx-Series to a PC and for basic reporting and analysis of your findings.

Main features of FLIR Tools are:

Import images from the thermal imaging camera to a PC Lay out, move and resize measurement tools on any thermal image Create PDF imagesheets of specific images Add headers, footers, and logos to reports Apply filters when searching for images

Users that need more reporting functionalities can choose for FLIR Reporter software which is also compatible with the new FLIR Ebx-Series.
