Efficient Hydronic Heating Cleansing System from Hunt Heating

hydronic heater and fernox logo

Powerflushing
The most efficient and effective
method of cleansing a hydronic heating system

Fernox

With over 40 years experience in the field of domestic water treatment Fernox have developed a range of products to help maintain the efficiency of hydronic central heating systems and to ensure their long term protection against the damaging effects of corrosion and limescale.

boiler water

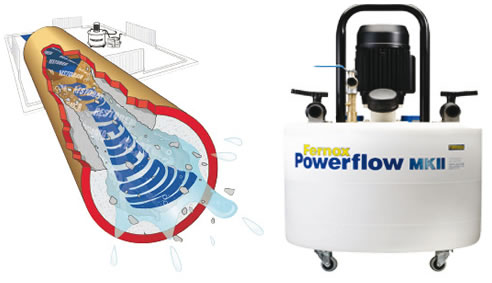

As the original manufacturer of the very first powerflushing unit - the squid in 1987, Fernox have continually invested in research and development and have recently launched the new Powerflow Flushing Machine. With all the latest design features the Fernox Powerflushing Machine will ensure a fast and effective system clean.

central heating pipes The cleaning and treating of hydronic central heating systems

All new systems should be pre-commission cleansed as recommended by the current British Benchmark. This ensures flux residues, excess jointing compounds, mineral oil and other contaminants that can be found in the system or cause component failure are removed.

It is important when installing new boilers into old systems that all sludge is removed from the system or this could accumulate in the new boiler and lead to premature failure. Additionally, in hard water areas existing systems will have accumulated limescale together with corrosion desposits in the heat exchanger, which could easily have reduced the boiler efficiency by over 5%.

What is power flushing?

Power flushing is the most efficient and effective method of cleansing a hydronic central heating system. The principle is to create a powerful fresh water flow under controlled conditions to remove debris from the system. By connecting the power flushing unit to the heating circuit in place of the system pump, boiler or radiator the circuit can be thoroughly cleansed of limescale and corrosion debris.

When used in conjunction with a Fernox Cleaner F3 a typical power flush can be completed in 3-4 hours.

hydronic heating problems The problems

Fuel wastage
Without treatment, corrosion debris will accumulate in the boiler causing increasing limescale deposits, reduced heat transfer and up to a third of a fuel bill going to complete waste.

Boiler noise
This increases in frequency and intensity as deposits of sludge and scale build up in an unprotected boiler.

Cold spots
The familiar cool low central area of a radiator indicates a build-up of black sludge sediment that restricts flow and reduces heat.

Frequent venting
When the top of a radiator is cold during operation, either air or hydrogen is to blame. Hydrogen gas builds up as a by-product of electrolytic corrosion and is flammable (due caution is required).

Pump seizure and failure
The abrasive and magnetic properties of black oxide sludge increase shaft and bearing wear in pumps causing them to stick or fail.

The Solution

Pre-commission cleanse new systems and thoroughly cleanse existing systems with Fernox Cleanser or Fernox DS-40 System Cleaner before adding a suitable Fernox Protector (F-1) to maintain efficiency and ensure the longevity of the system.

powerflushing
