Variable Turret Height System from Sydney Water Tanks

To ensure maximum fall to your tank, we will calculate the best location and depth for your water tank. This means that every drop is harvested for increased rainwater storage while eliminating sediment build up in the pipes. Sydney Water Tanks provide a solution to collecting and storing water on sites where there is insufficient natural fall or even adverse fall to the tank and/or the overflow point.

The advantages of the Sydney Water Tank variable turret height system are:

- Easier to achieve the minimum fall required by the Australian Standard and some local councils

- No future maintenance problems to dig up and clean out underground pipe work due to charged pipe work

- No need to use a charged system, thus saving costs on providing PVC sealed downpipes

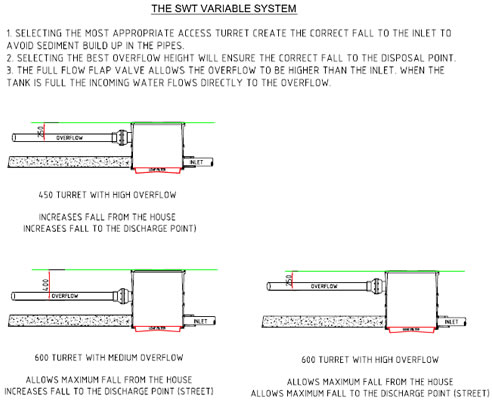

- The overflow is higher than the inlet to increase the grade to the site discharge point

- Each overflow is fitted with a 100mm non return flap valve to prevent vermin or reverse flows surcharging back into the tank

- The tank is fitted with a 100mm inlet and overflow sockets, ready for connection by the drainer to the house and overflow point

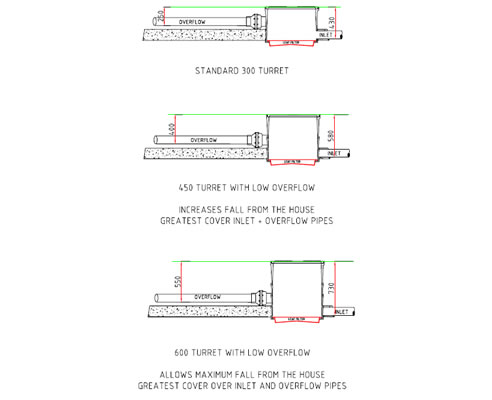

There are four tank capacities in our range - 3800, 6100, 10000 and 11500 litres and there are six models in each size based on the height of the turret and the overflow position. See detailed dimensions below.

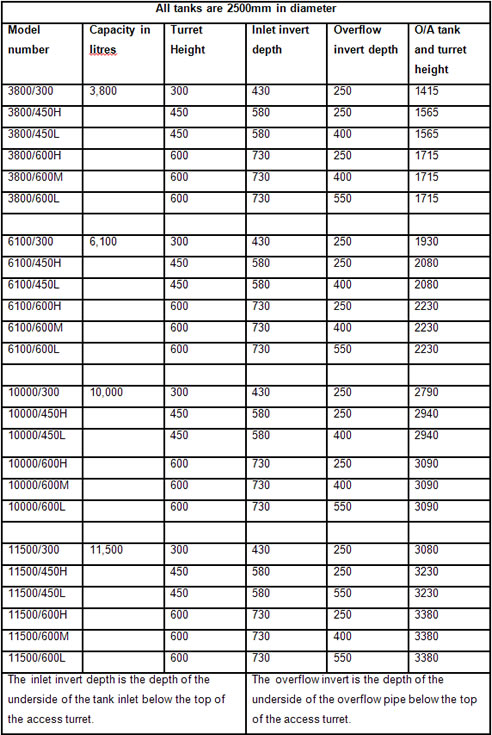

Tank capacities and dimensions
