ERH Outdoor Radiant Strip Heaters from Outdoor Heating

ERH outdoor radiant strip heaters &
custom architectural mounting hardware

This beautiful residence located on Sydney's Northern Beaches has very modern architecture and both interior and exterior design to match. With a private beach and four levels, the customer contacted OutdoorHeating Systems to design a sleek heating solution for the most frequently used outdoor dining & lounge area.

Unhappy with the performance of some existing gas heaters and having difficulty servicing and operating the gas heaters - it was an easy choice to look at installing the ERH Strip Heaters for trouble free, push button ease and universal comfort heating with excellent performance.

The ERH Strip Heaters will outperform every other radiant strip heater on the market, guaranteed.

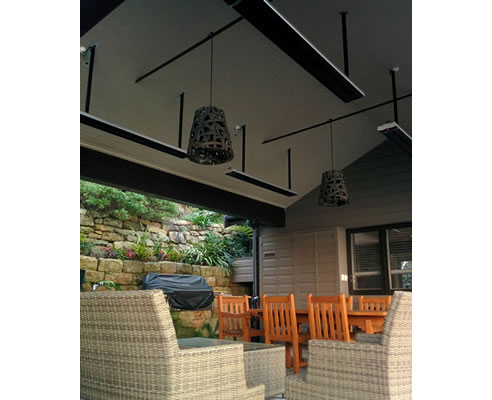

With existing pendulum light fittings made out of plant material, a structural ridge beam and a nice tall perimeter beam - it was decided to install the ERH strip heaters 2650mm above floor level. The 4 x OH-ERH-2400W heaters were mounted on custom 25x25mm black anodised aluminium dropper brackets which were further trimmed at 34 degrees to mount smoothly to the existing pitched ceiling. All cable feeds are done internally for a neat unobtrusive finish.

The system design provides a nice even spread of heat for the entire dining and lounge area covering at total of 22 square meters.
