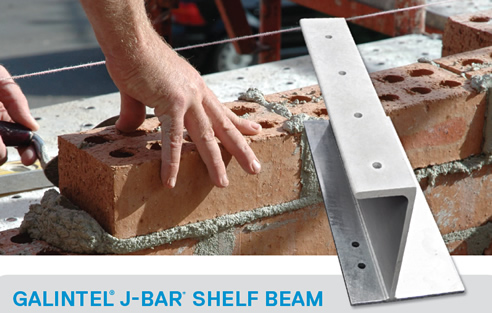

Galintel® J-Bar* Shelf Beam - The Galintel® J-Bar* Shelf Beam is the ideal solution for cavity walls, either double brick, or brick veneer with timber trusses.

The J-Bar* was developed in response to demand from builders for an economical substitute for built-up steel sections such as parallel flange channel and plate.

Similar to a T-Bar but with a special top flange incorporated into the upright section, the Galintel® J-Bar* provides an off-the shelf solution for cavity walls and is hot-dip galvanised, fully engineered and university tested.

Available from accredited Galintel® distributors, the J-Bar* is a convenient alternative to custom-made beams such as PFC and flat plate, which have to be fabricated and galvanised.

As with all quality Galintel® products, the J-Bar* Shelf Beam is provided with a full product warranty and safe load tables.

The Galintel® brand is your guarantee of quality, performance and code compliance. For full technical details, phone 1800 065 634 or email: bi@nepean.com.au

The quick, economical solution for cavity walls

Header flange pre-drilled and galvanised for timber fixing
Bottom flange pre-drilled and galvanised for column connection
Innovative, efficient design
Up to 20% lighter than built-up steel sections
Fully hot-dip galvanised including ends (600 g/m2)
Standard range of lengths
Non-standard lengths available to order
Engineered and university tested
25 year performance warranty
Convenient 'off the shelf' solution
R3 durability rating

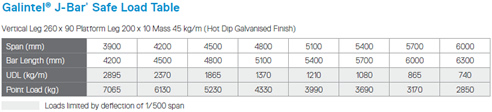

Notes on Safe Load Table for J-Bars*

This load table assumes that:

The web of the J-Bar* is vertical
The J-Bar* is simply supported at both ends
The J-Bar* is loaded such that the load acts vertically and equally on both sides of the web
The J-Bar* is considered as being laterally unrestrained for the full span length
UDL loads are constant along the length of the bar
Point loads are assumed to act at midspan
150mm minimum end bearing support onto brickwork
Hot-dip galvanised to AS/NZS4680:2006
Loads in accordance with AS/NZS1170.1:2002

*Registered design
