East Coast Industries Australia Pty Ltd

Balustrade Post and Base Assembly by East Coast Industries Australia

balustrade post and base assembly

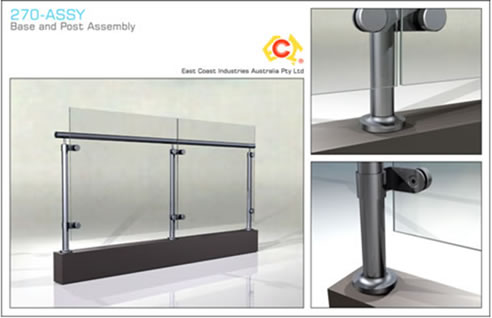

The 270-ASSY is a Base and Post Assembly with an M12 fixing into the ground. It is specifically designed for our exclusive slide over glass brackets, but can be used for many other balustrade purposes. The 270-ASSY is an easy to install DIY option.

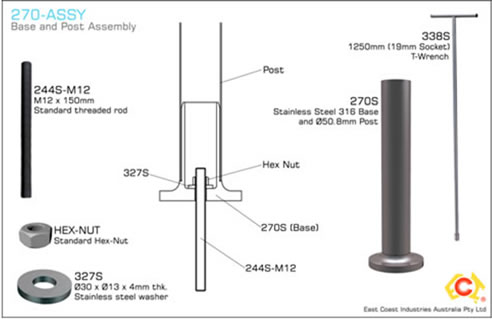

The M12 rod is secured to the ground using a chemset. The base and post fit over the protruding thread and using a long T-wrench, the post assembly is fastened to the ground using a standard M12 hex nut. The 270-ASSY can be installed onto concrete/stone, onto timber decking using a coach bolt and also onto steel.

ecia 270-assy baustrade system

The size of the base is Ø100mm x 24mm high. The Ø50.8mm (Ø2") Post can be cut to your desired length up to 1600mm. Prices are according to length of post.

Our products are manufactured through strict quality control procedures from high quality stainless steel all for competitive wholesale prices.

ECIA is not limited to off the shelf products, also providing fast design support and manufacture of custom products to your specification. Aluminium, steel, plastic and many other materials can be manufactured to suit your special requirements.

For our newly updated 2014 catalogue, please visit our website at www.ecia.com.au and if you have any questions or enquiries on our products, please contact us on (02)98380295.
