Solaflux and Tetraflux solar pumps by Greenbridge Energy Australia
Solaflux
Is the source of water more than a kilometer away? Is the borehole very deep? No grid supply?
Is it difficult to reach the water source from the grid? Do you need to use your pump for
several water sources?
The stainless steel SOLAFLUX pump solves all these problems economically using solar energy.

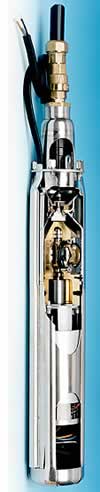

The SOLAFLUX is a small, highly efficient stainless steel direct current submersible pump
operating at voltages from 24V to 48V, with currents from 1 amp to 4 amps, at heads from 0m.
to 150m. The superb performance of the SOLAFLUX is due to its patented system of balanced
opposed sealed pistons.
An air-cooled permanent magnet DC motor fitted with special long duration brushes drives a
cam shaft which moves bearings set inside the pistons. Among the three main SOLAFLUX models
only the cam shaft differs. The 3mm. cam for low head high capacity applications, the 2.6mm
cam for medium head medium capacity applications, and the 2mm cam for high heads and lower
capacities.
The SOLAFUX can fed by 2 to 4 normal (12V) photovoltaic panels or through batteries.
Capacity ranges from 1.000 to 8.000 liters of water perday. An electronic controller should
be used. The SOLAFLUX has a diameter of 98mm, a height of 760mm, weighs 13 kg and is fitted
with a rapid coupling suitable for use with 25mm polyethylene feed pipe. External appearance
and tecnical characteristics can be modified at any moment without notice.
Tetraflux
The TETRAFLUX is a small, highly efficient stainless steel direct current submersible pump
operating at voltages 48V, with currents from 2 amp to 6amps, at heads from 0m. to 150m.
The superb performance of the TETRAFLUX is due to its patented system of balanced opposed
sealed pistons.
The TETRAFLUX can fed by 4 normal (12V) photovoltaic panels. Capacity ranges from 3.000 to
16.000 liters of water perday. An electronic controller should be used.
The TETRAFLUX has a diameter of 98mm, a height of 920mm, weighs 18 kg and is fitted with a
rapid coupling suitable for use with 25mm or 32mm polyethylene feed pipe.
External appearance and tecnical characteristics can be modified at any moment without notice.
