Self lubricated plastic bushes from Allplastics Engineering

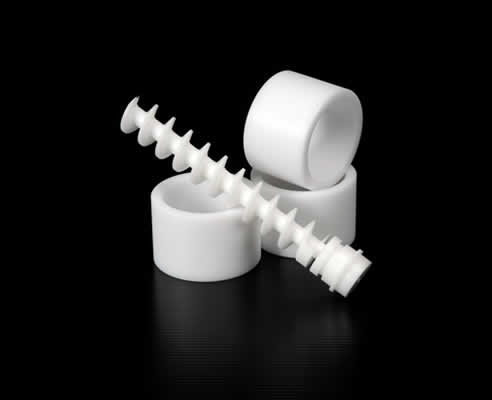

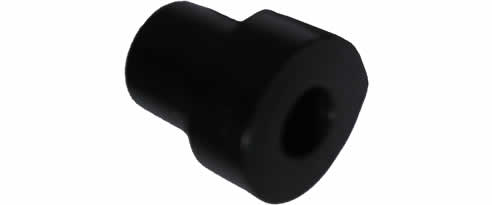

Allplastics manufactures a wide variety of thermoplastics bushes and bearings. These provide an extremely cost-effective alternative to conventional metal bearings. The plastic bushes are usually made from a superior Nylon material impregnated with molybdenum disulphide (MoS2). This additive lowers friction which reduces the need for lubrication and prolongs the life of the bush. For specific conditions and applications Allplastics also uses other thermoplastics such as Acetal (Delrin®), UHMWPE, Polypropylene, Polyester (Ertalyte), PEEK. These bushes have generally been designed with an interference fit in the OD (Outer Diameter) to allow for a good push-fit into the housing. An additional clearance needs to be allowed in the ID (inner diameter) so that when the bush is installed, it will have the correct clearances for most applications. Other factors such as temperature variations, moisture absorption and bearing speed may influence the clearance requirements. Our machined bushes can be plain or with shoulder (Flanged). Sizes can be made as small as 6 mm Dia and up to 300mm Dia. Benefits - Low friction.
- Lightweight.
- Non corrosive.
- Self lubricated.
- Insulating.
- Good chemical resistance.
Applications- Sleeves.
- Electrical insulators.
- Bolt hinges.
- Dry running bearings.
- Packers.
- Exercise machines.
For further information contact:
Allplastics Engineering Pty Ltd
Address: Unit 20, 380 Eastern Valley Way, Chatswood, NSW, 2067
Phone: 02 9417 6....
Fax: 02 9417 6....
Web: www.allplastics.com.au
|
