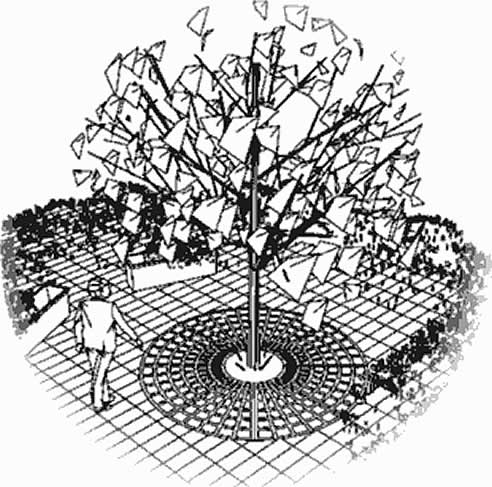

Cast iron tree grates by Macot Engineering
Safe & Secure
To aid with the prevention of unauthorised removal of grates, castings
can be provided with allen head bolts to attach frames to grates.
Special Shapes & Sizes
You may have your own ideas or a design for a project in mind. Mascot's
foundry can transform your ideas to reality. Even relatively small production
runs can be catered for. Contact your nearest Mascot Sales Office for details.
Casting Sections
All tree grates are made up of a number of smaller castings which simply bolt
together to achieve the finished shape.
Safe Working Load
Most of Mascot's tree grates are designed for pedestrian traffic only. They are
however, some designs which with a small frame modifications, can support light
vehicular.
Hole Sizes
Standard internal hole sizes are shown in the space below each illustration.
The nominated dimension is a guide only, as most castings have a design feature
which allows the opening to incrementally expand with tree growth.
For further information contact:
Mascot Engineering
Address: 37 Tarlington Place, Smithfield, NSW, 2164
Phone: 02 9828 2....
Fax: 02 9828 2....
Web: www.mascoteng.com.au
|
