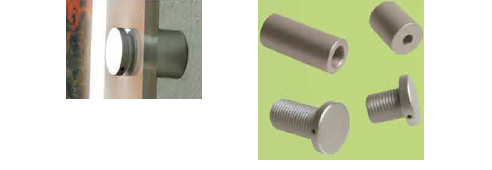

Liberty Through Hole Panel Fittings from Artisan Group
Wall - Mounting Bracket
Requires 14mm dia. hole in panel.Mix and match components to provide the required combination of wall spacing and panel thickness
AP 1858
Barrel - 20mm dia
Length - i.e. gap from wall - 25mm
AP 1861
Barrel - 20mm dia
Length - i.e. gap from wall - 55mm
Screw
AP 1856
To suit max.panel thickness - 16mm
AP 1859
To suit max. panel thickness - 10mm
For further information contact:
Artisan Products
Address: 41-43 Brodie Street, Rydalmere, NSW, 2118
Phone: 1300 278 472
Fax: 02 9684 2722
Web: www.artisangroup.net.au
|
