Stair Nosings & Stair Treads from TGSI

Stair nosing/ stair edging range is specifically designed to meet the requirements of the Building Code of Australia. The products are strong, durable, aesthetically pleasing. Our stair nosing range provides a mix of quality, performance, compliance and affordability. Products are in stock available for immediate dispatch/ use for installations. Range of coloured inserts provide effective options to meet luminous contrast requirements.

Stair Nosing & Stair Tread Range

FRP GRIT MASTER:

  • Material: Fibre reinforced polymer, carborundum grit coated
  • Dimensions: 30mm X 70mm/ 100mm X 3.2mm. Custom sizes available.
  • Front edge: 3.2mm decreasing to a 2mm tapered front edge (tapered edge begins 10mm from front edge and spans 10mm).
  • Color: High visibility yellow, black, custom
  • Types: General (flat underside). Custom ladder rungs are also available.
  • Nose: Straight edge
  • Weight: 0.69 Kg/ LM (70mm top face width), 0.92 Kg/ LM (100mm top face width).
  • Notes: High slip resistance, strong, UV stable, water resistant, hydrocarbon resistant, fire resistant, light weight, long life, low maintenance, economical.
  • Application: Industrial facilities, general purpose. Install FRP Grit Master stair nosing direct on existing substrate.

stair nosings with gritted surface

CLASSIC 50:

  • Material: Anodised aluminium (10 Micron), 6063 T5
  • Dimensions: 71mm X 34mm X 2.5mm. Top face channel to accommodate PVC strip insert.
  • Insert: 50mm PVC strip
  • Insert colors: Black, grey
  • Types: General (flat underside)
  • Nose: Straight edge, smooth.
  • Location: Indoor
  • Fixation: Mechanical, chemical or combination. Incorporates counter sunk holes for screw-in fixation.
  • Notes: Strong sturdy construction, durable. Provides combination of quality and affordability.
  • Lengths: 3.5 meter or cut to size.

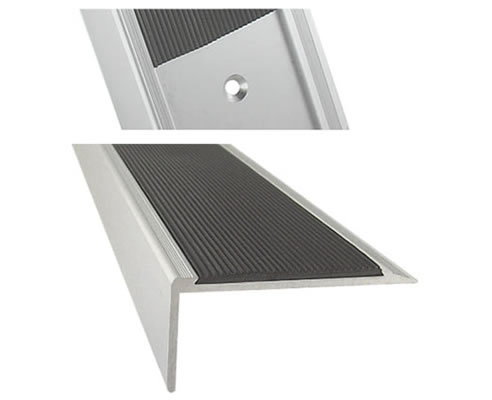

stair nosings

SAFE STEP 50:

  • Material: Anodised aluminium (10 Micron), 6063 T5
  • Dimensions: 71mm X 34mm X 2.5mm. Top face channel to accommodate non slip adhesive backed tape.
  • Insert: 50mm wide Aluminium oxide/ silicon carbide grit adhesive backed tape. Or PVC embossed adhesive backed tape.
  • Insert colors: Coarse grit: Black, grey, yellow, luminous. Medium Grit: full color range (refer to: anti-slip tape section of web site)
  • Types: General (flat underside)
  • Nose: Straight edge, smooth.
  • Location: Indoor, outdoor, high slip resistance.
  • Fixation: Mechanical, chemical or combination. Incorporates counter sunk holes for screw-in fixation.
  • Notes: Strong sturdy construction, durable. Large color range for insert. Easy maintenance and low cost availability of inserts. Provides combination of quality and affordability.
  • Lengths: 3.5 meter or cut to size

stair tread with gripped surface

R60:

  • Material: 100% Rubber (SBR)
  • Dimensions: 60 X 45 X 5mm
  • Colors: Black
  • Types: General (flat underside)
  • Notes: Fire tested to ASTM E648, FMVSS 302, ASTM E662, BSS-7293, Exceeds ADA (ASTM D2047) slip resistance.

rubber stair nosing

We supply Australia Wide offering high quality products at the right price
