Tetraflux submersible water pump from Greenbridge Energy Australia
Is the source of water more than a kilometer away? Is the borehole very deep? No grid
supply? Is it difficult to reach the water source from the grid? Do you need to use your pump for several
water sources?
The stainless steel TETRALFLUX pump solves all these problems economically using solar energy. The TETRAFLUX
is a small, highly efficient stainless steel direct current submersible pump operating at voltages 48V,
with currents from 2 amp to 6amps, at heads from 0m. to 150m. The superb performance of the TETRAFLUX is due
to its patented system of balanced opposed sealed pistons.
The TETRAFLUX can be fed by 4 normal (12V) photovoltaic panels. Capacity ranges from 3.000 to 16.000 litres
of water perday. An electronic controller should be used. The TETRAFLUX has a diameter of 98mm, a height of
920mm, weighs 18 kg and is fitted with a rapid coupling suitable for use with 25mm or 32mm polyethylene
feed pipe. External appearance and tecnical characteristics can be modified at any moment without notice.

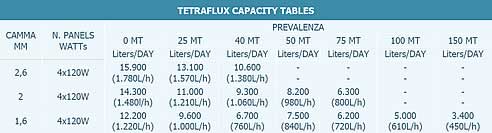

The table shows possible typical daily summer capacities at latitude 40 degrees North with at least a
daily insolation of 7,0 kWh/m². Capacities in winter (whit an insolation around 5,2 kWh/m² day) are
approximately 73% of the summer capacities. Before attempting to measure pump capacity allow the pump to
run in for a few hours. External look and tecnical characteristics can be modified at any moment whithout
notice.
