Yana bladder tanks for water storage
The harvesting and collection of rainwater from your roof is a relatively
simply process incorporating RainPac™ rainwater solutions. Ideally suited for any confined
space and are a discrete water storage system. Made from double layered PVC our water bladder
tanks need no frame work as they are self supported.
Yana Bladder tanks are made from a potable grade fabric and can be used to store drinking water.
Our selected fabric is used extensively in the bulk liquid transport industry, providing us
with unparralled strength regarding warp and weft tensile strengths. The selected fabric meets
AS4020 regarding materials in contact with drinking water, and is actually used in other countries
for drinking water where the standards are stricter than what we have in Australia.
All prices displayed include GST, and a fitting kit. For specifications on these, please do not
hesitate to contact us, or visit our FAQ section.
Please contact Yana, if the range listed is not suitable for your area, customised solutions
available. All you need to supply is the width, length and maximum height clearance of the area
you wish to use, and we will provide you with a complete quotation within 48hrs for your customised
solution.
A RainPac™ rainwater bladder tank is installed under housing, decking, or basically any structure
with enough clearance (somewhere between 400 - 715 mm depending on the width of the bladder tank)
and is linked to a 90mm mani fold pipe at the front of the tank via our unique underground 100mm inlet
system. If this system does not suit your application, fitting configuration can be changed to suit your needs.
The mani fold irrigation line in front of the bladder is then connected to as many downpipes around
the home as possible, meaning far greater amounts of rainwater are collected than traditional tank options.
Depending on your water usage requirements, a pressure pump is then attached to one of the outlets on
the bladder so the water can be transferred and used as per your requirements. For options in pumps,
please see our household pumps section, or alternatively contact us to discuss your needs.

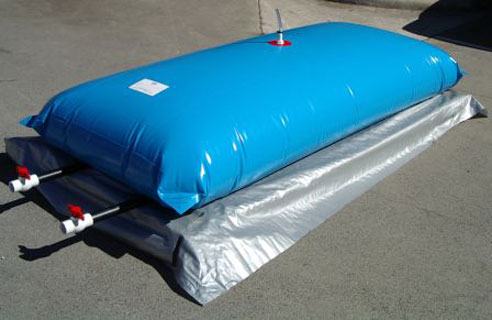

Each RainPac™ rainwater bladder tank is supplied with: 1 x 4" (100mm) threaded inlet 2 x 1¾"
(32mm) threaded outlet with 600mm poly extenders and ball valves for connection to your selected pump;
1 x ground sheet which covers the length of the area your bladder takes up - this helps to stop organisms
growing under the bladder, and helps to protect the bladder from sharp implements and therefore increasing
its lifespan.
