Electrically Conductive Mats from The General Mat Company

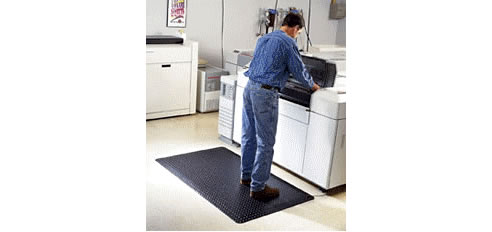

Electrically Conductive Anti-Fatigue No. 786 The Electrically Conductive Anti-Fatigue mat quickly drains static electricity from workers before it can be passed on to sensitive equipment such as computers, cash registers or any product with a computer chip. Designed to dramatically reduce standing worker fatigue, Electrically Conductive Anti-Fatigue has a Nitricell® "Supreme Comfort" sponge base. For maximum effectiveness, ground the mat and keep the surface clean.

Specifications

Uses: Areas at risk for damage from static electricity
Compound: Vinyl
Resistivity: RTT - 1 x 106 ohms, RTG - 1 x 106 ohms
Thickness: 12mm
Coefficient of Friction: .68 Dry per ASTM F1677
Compression: .415 inches @ 35 psi per ASTM D575
Tabor Abrasion: 1% lost @ 1,000 cycles per Fed Std. 193 Modified
Flammability: Pass MVSS 302
Warranty: 3 year, conditional
Colour: Black

Stock Sizes

900mm x 1500mm
900mm x 22.8M roll
Per metre cut to length and bevelled x 900mm wide
Snap lock ground cord available

Custom widths and unique configurations are available. Please call for a quotation.
