Polyisoboard

Rigid Insulation PIR Foam Board from Polyisoboard

polyisoboard pir insulation

POLYISOBOARD™ (PIR) Insulation

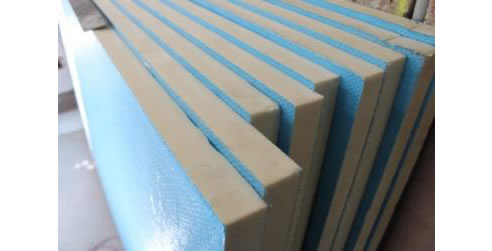

POLYISOBOARD is a closed-cell, rigid PIR foam insulation board that has a Polyisocyanurate foam core and can be sandwiched between a fibre cloth scrim finish on one side and either bright shiny aluminum foil or a white or black acrylic coated aluminum foil on one side.

Technical Data:

Board Dims: 2400mm x 1200 mm (2.88m2)
Compressive Strength: 291 (kPa)
Density: 40 kg/m2
Water Vapour Permeance: <0.3 %
Water Absorption: 0.05 %
Thermal K Value: 0.0212 (W/mK)
Operating Temperature: -46 to +88°C
Fire Rating: Group 1 building product. Complies with AS/NZ 3837: 1998 BCA 2013 section J

POLYISOBOARD insulation is created using a free-rise manufacturing process, which produces a closed cell foam that is specially formulated for improved thermal rating and fire performance. The combination of the closed-cell foam core and sturdy facers produces boards that deliver high R-value plus excellent dimensional stability and moisture resistance.

Features and Benefits:

  • A moisture-resistant foam core.
  • White laminate finish resist damages, pressure-washable, provide attractive finish, improves light reflectance in undercover car parks providing safer zones.
  • The most thermally efficient insulation available in the marketplace - highest R-value per cm of thickness.
  • Compatibility with most solvents used in construction adhesives.
  • Excellent dimensional stability. Compressive strength refers to the ability of a rigid foam board to resist deformation and maintain its shape when subjected to a force or load. Common construction compressive strength applications require Polyisoboard to maintain its shape during installation as well as during use. Polyisoboard insulation boards are available in a range of compressive strengths.
  • Superior performance in fire tests - Polyisoboard meets Group 1 building materials and passes Classification: Group 1 fire tests without a thermal barrier.
  • Environmentally Responsible. A CFC - and HCFC-free product with zero ozone depletion potential. (Zero ODP) .
  • Custom Length up to 7.0M width from 1200mm to 1350mm wide and profiles available on request.
  • Australian made and owned. Availability throughout Australia.

For Further Technical, Sales, Installation Service or Advice please contact us.
