Maximum Service Temperature Compressive Strength Specification Notes General Installation Advice Back to: Product Description & Typical Applications Quality Assured AS/NZS ISO 9002 1994 Approved by BVQI Certificate 19875 Back to Index page Link to: AcoustiSorb 3 Data Sheet

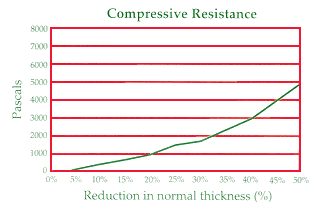

AcoustiSorb 2 D A T A S H E E T ..Maximum Service Temperature The maximum service temperature for AcoustiSorb 2 is 90oC. When used with a vapour barrier facing such as Duriod 830 or 850 plain or perforated, tolerance of the facing adhesive limits the surface temperature tolerance to 70oC. o ..Compressive Strength Even after prolonged storage under compression, AcoustiSorb 2 has excellent resilience. ..Specification Notes State: Product name - Tontine AcoustiSorb 2 Thickness or heat loss / gain criteria Type of equipment and operating temperature range Whether facing such as Duriod perforated 830, 850 or Baron A1 Foil Trilam is required ..General Installation Advice All forms of Tontine products can be cut with a sharp knife. Cutting with rotary cutters is also recommended. AcoustiSorb 2 can be fixed to the internal face of ductwork or similar surfaces by impaling on spot welded metal pins faced to the outside face of the duct at 300-450mm centres in both directions with minimum of two rows per side of duct.
