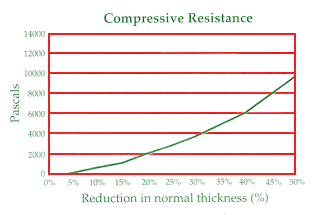

AcoustiSorb 3 D A T A S H E E T ..Maximum Service Temperature The maximum service temperature for AcoustiSorb 3 is 90oC. When used with facings such as Duriod 830 or 850, tolerance of the facing adhesive limits the surface temperature tolerance to 70oC. o ..Compressive Strength Even after prolonged storage under compression, AcoustiSorb 3 has excellent resilience. ..Specification Notes State: Product name - Tontine AcoustiSorb 3 Thickness or heat loss / gain criteria Type of equipment and operating temperature range Whether a vapour barrier facing is required such as Duriod 830 perforated foil. ..General Installation Advice All forms of Tontine products can be cut with a sharp knife. Cutting with rotary cutters is also recommended. AcoustiSorb 3 can be fixed to the internal face of ductwork or similar surfaces by impaling on spot welded metal pins faced to the outside face of the duct at 300-450mm centres in both directions with minimum of two rows per side of duct.
