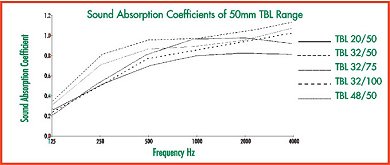

Tontine Sound Batts ACOUSTIC DESIGN MANUAL Cont. ..Sound Absorption Coefficients The following reverberant sound absorption coefficient tests were carried out in accordance with AS 1045-1971 "Measurements of Absorption Coefficients in a Reverberation Room" by Challis and Associates Pty Ltd, NATA Registered Laboratory. TBS Products Frequency             Product 125 250 500 1000 2000 4000 NRC TBS 3 TBS 4 TBS 5 0.34 0.32 0.36 0.38 0.52 0.56 0.52 0.65 0.73 0.56 0.72 0.75 0.64 0.75 0.80 0.62 0.88 0.86 0.50 0.65 0.70 25mm TBL Products Frequency             Product 125 250 500 1000 2000 4000 NRC TBL 20/25 TBL 32/25 TBL 28/25 0.17 0.20 0.15 0.30 0.28 0.35 0.45 0.52 0.60 0.55 0.69 0.75 0.62 0.73 0.83 0.67 0.78 0.93 0.50 0.55 0.65 50mm TBL Products Frequency             Product 125 250 500 1000 2000 4000 NRC TBL 20/50 TBL 32/50 TBL 32/75 TBL 32/100 TBL 48/50 0.27 0.23 0.33 0.36 0.21 0.54 0.52 0.76 0.86 0.56 0.74 0.81 0.92 1.04 0.86 0.85 0.90 0.96 1.05 1.03 0.88 0.95 1.06 1.16 1.04 0.87 1.01 1.15 1.21 0.99 0.75 0.80 0.90 1.00 0.85 For additional technical data on the Tontine Polyester Insulation acoustic range of products, refer to the individual data sheets for Tontine Sound Batts and Tontine Black Liner products.
