Rainscreen Cladding Brackets from Dynamic Composite Technologies

Dynamic Composite Technologies has all your Nvelope bracket and rail systems, including the NV5 back frame/bracket.

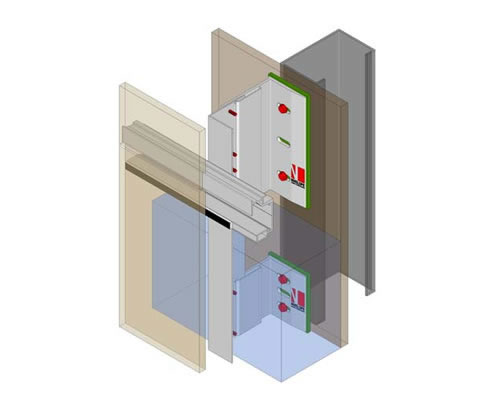

The NV5 is the Nvelope system for secret fix applications - vertical cladding applications (Trespa meteon HPL only). These panels are supported at the bottom by the horizontal Nvelope NV5 channel profile, which provide restraint to panel tops.

Vertical joints can be open, baffled or formed by half laps with appropriately designed panel edges providing a concealed fixing. Individual panels can be removed for maintenance or replacement.

Nvelope 'T' and 'L' profiles are fixed using Nvelope 'helping hand' support brackets, fixed through a series of fixed and flexible points.

Nvelope flexible point brackets absorb wind loading and allow for expansion and contraction. These fixed point brackets absorb both vertical and dead loads.

Nvelope bracket spacing is determine by cladding options such as the dimensions and weight of the facade cladding options such as the dimensions and weight of the facade cladding, local wind loads, cladding zone and substrate.

Applications
- NV5 is suitable for secret fix cladding applications - Trespa meteon HPL only.

Features
- Manufactured from extruded aluminium alloys conforming to EN 573-3 (material) and EN 755 production standards.

Standards
- British Board of Agrement (NNA) - 09/4678.
