FX-350

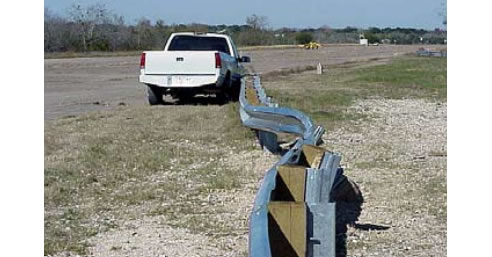

FX-350 is the latest innovation in guardrail barriers providing safe vehicle containment and redirection. FX-350 is fully compliant to NCHRP 350 Test Level 3 (TL3) having withstood a 2,000kg pickup impacting at 100km/h and 25 degrees.

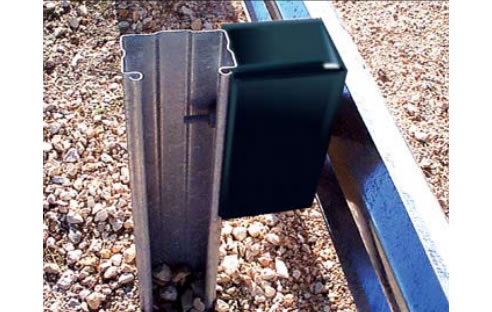

FX-350 features specially engineered O-Posts and 200mm offset blocks which replace traditional 'deemed to comply' C Posts and offset blocks. The O-Post has been crash tested for bi-directional impacts.

O-Posts contain easy to handle, roll formed edges, providing a handle like grip with no sharp edges. Side ribs add section strength and increase drivability. The O-Post is 20% lighter than traditional posts, providing easier handling and installation.

FX-350 has been designed for direct attachment to the ET2000 Terminal, Ingal Melt Terminals and Thriebeam bridge approach systems.
