Polyolefin Foam Pipe Insulation from Ecowise

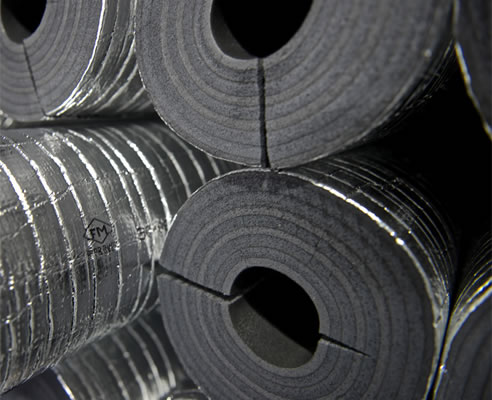

Thermobreak Tube is a completely closed cell, physically crosslinked polyolefin foam pipe insulation with a heat bonded factory applied reinforced aluminium Foil. Thermobreak Tube has a large operating temperature range of -80°C to 100°C which give it the capabilities to be used on Hot Water, Chilled Water, Heating water, Condensation lines, Refrigeration and more.

The tube is available in 2 metre lengths and is pre-slit on the longitudinal. This feature will provide the installer a quick and efficient installation. This also allows for less joints, saving on labour cost and consumables. Thermobreak Tube has a density of 25kg/m3 which gives it greater flexibility, whilst still being tough and durable. The lower density also allows Thermobreak Tube to have one of the best thermal insulating properties available on the market.

Features & Benefits

• Closed Cell - Will not absorb water should condensation occur.
• Green Star - Green Star Compliant with VOC's and Global warming potential & Ozone depleting potential.
• Codemark Certified - Approved System in manufacturing and installation by the Australian Building Codes Board (ABCB).
• FM Approval - Thermobreak is the only pipe insulation manufactured in Australia that is FM Approved.
• Fire Rating - 4 Zero Fire Rating, complies with standard AS1530.3(1999)
• Smoke Density & Toxicity - Conforms to ISO 5659-2 "Smoke Density & Toxicity".
• UV Resistant - Foil used on Thermobreak Tube allows it to be used outdoors
• Anti Microbial.
• Non Fibrous - Thermobreak does NOT contain (SMF) Synthetic Mineral Fibres, so no gloves or respiratory masks required upon installation.
• Temperature Range - minus 80°C to + 100°C
• Lengths & Sizes - Available in 2 metre lengths with full range of Copper, PVC & Steel sizes.
• Wall Thickness - Available in 10mm, 15mm, 20mm,25mm,30mm,40mm, 50mm & 55mm.
• Developed & Manufactured in Australia.
