Unison Joints has taken a utilitarian, yet aesthetically inclined approach to the ByC design. Through intensive research and refinement, the Queensland-based company has arrived at successful results for the extra heavy duty cover plate system that they had envisioned for ByC. Among the world-class features of ByC by Unison Joints are, as follows:
High Grade Composition
ByC exhibits high capacity, as accounted for its outstanding structural strength. The standard cover plate of the extra heavy duty cover plate system is composed of high grade alloy in mill finish. Specifiers can also be supplied with ByC in natural and colour-anodised aluminium, stainless steel, or bead blasted (BB) finish.

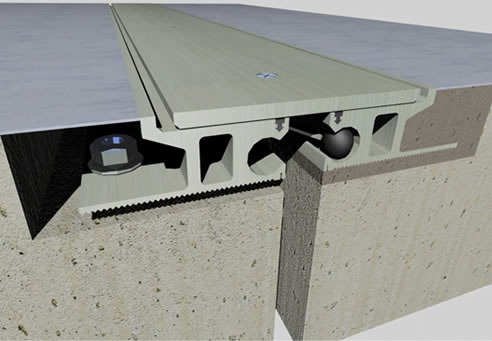

Centre-bars are the coupling system holding the 3 alloy components together. Unison Joints uses an injection moulded composite blend to manufacture their c-bars, making this ByC system totally corrosion resistant.
Extra Heavy Duty Facility
With premium quality materials, ByC provides accommodation for heavy loads of rolling traffic, including scissor-lifts, forklifts, pallet trolleys, and other bulky service equipment in both indoor and outdoor applications. ByC is also designed with concealed fixing and square edges to minimise the wheel impact in any direction of movement, while promoting the longevity of the product. Thus, the most common installations of ByC include loading docks, retail trading floors for bulk goods, and back of house areas.
Superb Slip Resistance

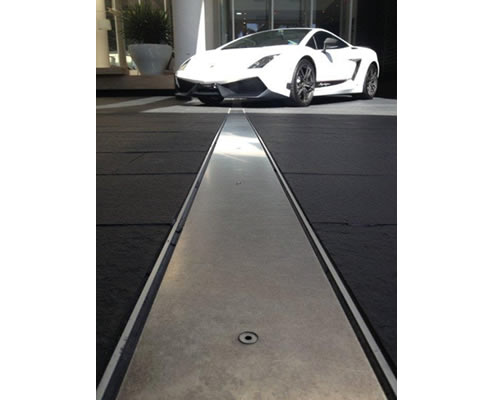

One of the most sought-after features of ByC is slip resistance. The bead-blasted cover plate has an excellent P5 or Class V rating in accordance with the AS4586-2013 Wet Pendulum Test. The innovative ByC design offers slip resistance, while allowing no bumps and other obtrusive elements to exhibit on the surface. When installed, ByC is perfectly flush with the adjacent floors. The extra heavy duty cover plate system provides safe trafficability for pedestrians, trolleys, passenger vehicles, maintenance equipment, and other kinds of traffic.
Tailor-Fitted Installation
ByC is available in the standard length of 4.8m for flexible compatibility with tile, vinyl, epoxy, and other concrete finishes. On top of customisable build for the cover plate of the system, specifiers can also opt for a retrofit option for previous installations. An optional "T" bracket can be employed for application to stone, paving, terrazzo and, exposed agg. Unison Joints has a Quality System to ISO9001, the international standard that specifies the requirements for a quality management system that satisfies customer and regulatory demands. ByC is guaranteed to reduce errors and site delays for the smooth workflow of projects.
Get in touch with Unison Joints via www.unisonjoints.com.au to learn more on heavy duty floor cover plate systems.
