3M™ VHB™ structural glazing tape from Signet

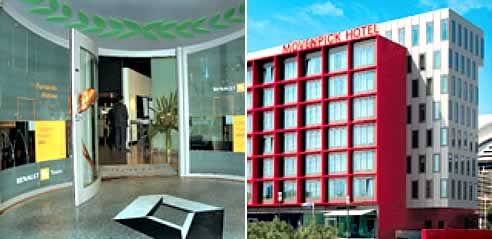

3M™ VHB™ Structural Glazing Tape is a two-sided pressure sensitive adhesive
acrylic foam tape designed to bond glass to metal frames in glass curtain wall systems. Each
application will be reviewed on a project specific basis. Application guidelines will be based
upon adhesion test results generated by 3M Technical Service. These project specific application
guidelines will be provided to the customer and must be followed during the glass bonding process.
Dynamic Loads (Deadload Support)
For dynamic tensile or shear loads (such as windloads), a design strength of 12 psi (85 kPa) is
used for 3M™ VHB™ Structural Glazing Tape. This design strength provides a safety factor of at
least 5 and was established based on material property testing as well as ASTM dynamic load testing
for curtain wall applications.
Static Loads (No Deadload Support)
For static tensile or shear loads (such as dead weight loads, snow loads, and other long-term
loads), a design strength of 0.25 psi (1.7 kPa) is used for 3M™ VHB™ Structural Glazing Tape.
This means 4 in2 of 3M™ VHB™ Structural Glazing Tape per one pound of load should be used to
support static loads. This guideline provides a safety factor of at least 5.
|
