Skirting, floor, trench & lighting ducts by Moduline
Skirting Ducts
Moduline's high quality aluminium skirting duct range is available in a
large variety of profile types and sizes. All our skirting ducts are extruded
to fine tolerances and are supplied with marviplate or extruded aluminium lids.
Standard colours are black, coral beige, opal grey and white. Mill finish
aluminium is also available where a custom colour or anodised finish is required.

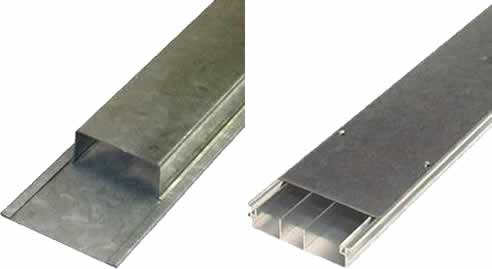

A two compartment skirting duct system with drop in sheet steel lid. A three
compartment skirting duct system with drop in sheet steel lid. A three compartment
skirting duct system with snap in extruded aluminium lid.
Floor Ducts - FD Series
Moduline FD Series of Flush Floor Ducts can be installed at construction stage or
cast in a recess at any time. The floor duct system comprises of duct body, fixing
/ leveling bars, and horizontal cross, tee & elbow fittings to form a complete
installation system. Generally the floor duct system is installed into a recess or
screed depth of 40mm. Moduline can build floor ducts to suit your load and size
requirements upon request.
Trench Ducts
Moduline's trench ducts are designed for heavy duty applications. The removable steel
lids allow for continuous cable access throughout the trench duct system. The aluminium
edge trim is provided to assist the concreter in establishing the finished floor level.
Other variations, sizes and types are available upon request.
All Purpose Ducts - AP Series
Moduline AP Series of All Purpose Ducts are suitable for all midwall,riser situations,
or in combination with other Moduline duct systems. The duct body is extruded aluminium
and supplied in 3 metre lengths. Standard finish is natural anodised and maybe powdercoated
to a selected colour.The duct lid is made from extruded PVC and easily snaps on the duct
body in 3 metre lengths, grey or white colour. Series AP5085 has a extruded aluminium
snap-on lid and supplied in 1.2 metre lengths.
Lighting Ducts - LT Series
Moduline LT Series of Lighting Ducts are an economical system for a wide variety of
applications and can be supplied in either lid-up or lid-down mode. All models come in
3 metre lengths with metallic splice plates. Mill finish or natural anodised can be
supplied with grey or white PVC lids. Special colours are available on request.
For further information contact:
Moduline
phone: (03) 9480 2244
fax: (03) 9480 0193
web: www.moduline.com.au
|
