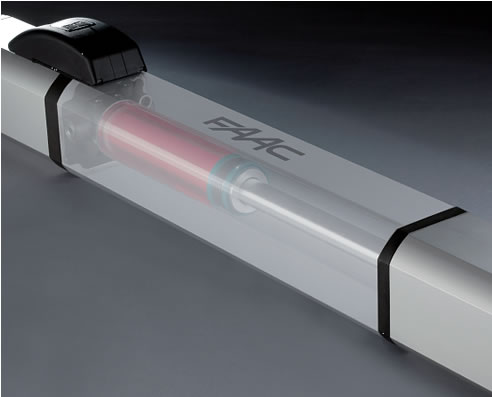

Swing Gate Operator S450H 24v by FAAC Australia

In keeping with our technological leadership in the automation market, we have released our latest Swing Gate Operator with our Hybrid technology (Hydraulics+24v). The main advantages with this operator include:

Fast opening/closing speed: The S450H 24v operator can reach a maximum speed of more than 2.5cm/sec, i.e. more than 2 times of the current (hydraulic or electro-mechanical) operators on the market.

Integrated Bus Encoder: This ensured maximum accuracy and safety with anti-crushing obstacle detection. It ensures perfect control of the operator in any position & ensures high accuracy in obstacle detection.

Integrated mechanical stops (opening/closing): Practical add-on opening mechanical stops are standard and can be used when the mechanical stops cannot be installed in the ground.

Duration & reliability: up to 4 times higher than an electromechanical operator. In hydraulic operators most of the components are in oil bath, therefore less subject to wear.

Thrust force: a thrust up to 2 times higher than an equivalent electromechanical operator can be generated, ideal for harsh conditions.

Harsh environments: particularly rugged and suitable for environments with difficult conditions (humidity, sand, salt etc) and low temperatures.

High operating frequency: the continuous lubrication of the components makes hydraulic operators suitable for heavy duty applications.

Maintenance: limited and cheaper with respect to an electromechanical operator eg in case of break-in an electro-mechanical operator is subject to irreversible ruptures and needs to be replaced, whereas hydraulic operators can be easily repaired (replacing the blocking valve).

Operating noise: the oil guarantees a very low operating noise during the complete operator lifetime (in electro-mechanical operators the wear and tear of the components can cause an increased noise level over time).

Easy to install: the multi-position adjustable rear brackets can be screwed and adjusted in 3 positions, enabling a better flexibility in the different installing conditions. The wall bracket has a further up & down adjustment mechanism with slots.
