StoneClip Support Clip - the new bracket fixing system
Support Clip has arrived. The new fixing is now available. It has been
certified by the engineering company Sheehy & Partners of Brisbane, Qld, to be
structurally sound against wind loading as well as a certified dead load support in
panel sizes up to 1000mm x 1000mm x 20mm when used according to the table of required
brackets / panel being installed. All this is available from www.stoneclip.com.
The fixing is designed to be epoxied into the top fixing point of the panel (this is
intended to be done prior to installing with the use of a bench saw that can be inclined
to 45 degrees), for the rigidity of the panel and then the bottom fixing of the panel it
is intended for this position to be secured with a suitable silicone to allow for any
movement in the panel that may happen due to pressure that can build up, either from the
substrate moving or the changes in temperature and the structural changes on the panels

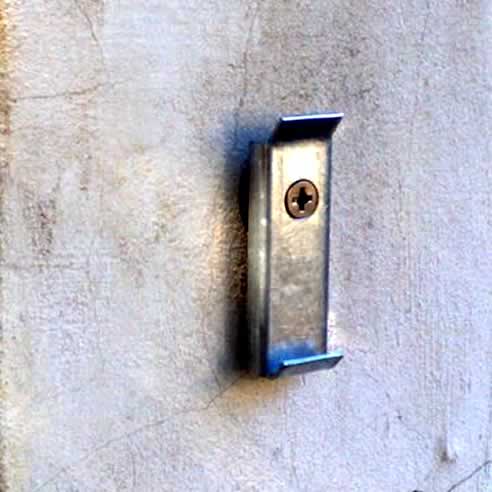

due to the above causing any bending or cupping. The adjuster is shown in the photo and
it is intended that this also have silicone placed on both sides of it prior to
installation. This allows the silicone to be absorbed by the construction grade foam and
then form a structural shock absorber when set between the bracket and the substrate.
The fixing screw that is supplied is a 14 gauge X 50mm long self tapper that can be screwed
into wood easily and into concrete structure with the aid of a Blue 8 mm nylon plug. Markings
are on the Support Clip to allow for joints to be laid to , such as 1.5mm and up to 3mm , so
that trade persons can see the brackets are in the right place prior to installation.
It is intended that the Support Clip is to be used for cavities of 5mm off substrate and
up to a maxi um of 15mm. By erecting your vertical support channels plum and straight in
place prior to installation it is possible to install the clips without the adjuster being
used at all. The Support Clips are to be sold complete with the screw and the 8mm foam adjuster.
The big plus of this fixing is that trades persons can now install big size Porcelain tiles
up to 1200mm x 600mm x 15mm thick and not be restricted when they reach 2.400mm high, in
fact they can fix one on top of each other and keep going and not worrying about glue being
set before the next course is installed . To conform with the building code of practise
it is intended that there be a complete break and start in the fixings (support clip) when
a height of 3000mm + or - is reached, so as you get a break in the dead load of the cladding.
This is done by using the same fixing and simply cutting it in half and installing the top
half of the fixing as the bottom restraint for the tile or panel of stone.
