Full Wall and Floor Waterproofing from Wetlock

The owner of this old Australian heritage style cottage in Cremorne, Sydney wanted to modernise the living style and practicality of the house. But while doing this retaining the cottage street appeal. Newton System 500 was installed to all new areas.

Project Description

Two new areas were added to the home. 1- A new timber workshop was cut-in under the existing home. 2- A new open-plan living area was extended off the back of the home, which was cut into the gently sloping block, and the retaining walls required a moisture control system.

For the workshop area, excavation to allow for an externally applied membrane was not possible due to structural restrictions, and so an internally installed system was required. For the open-plan living area, the owner and architect wanted a future-proof system that would mitigate all moisture ingress risks, including that of rising damp up through the existing concrete slab. The waterproofing system also had to be compatible with in-slab floor heating system. Newton System 500 was the logical choice as it was compatible with all required elements, and would provide the most long-term reliable results.

Methodology & Result

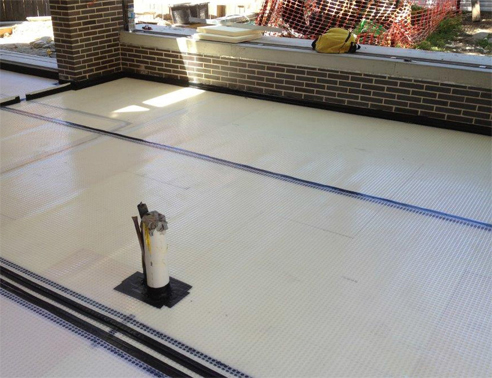

Wetlock undertook all Newton System 500 installation works, including full floor and wall waterproofing, and installation of Basedrain relief points ready for connection to existing stormwater drainage by the plumber. Newton Jetting Eyes were also installed. Wetlock fixed the Newton Cavity Drain Membranes with Newton Multiplugs to allow for installation of timber battens for plaster wall-sheeting.
