H Frame Roof Support Systems from HVAC Roof Supports

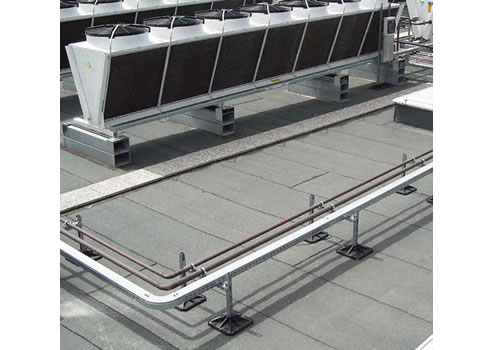

The H Frame Set is a quick, versatile and economical solution for supporting pipework, ductwork, cable trays or any combination of these. You provide your own strut, keeping the duct and pipe installations low cost and totally flexible by fabricating the frameworks on-site. Using inserts, the feet adapt to accommodate 41mm x 41mm off-the-shelf strut. The majority of installations require 305mm H Frames but where a greater load spread is required 450mm H Frames are also available.

SMALL FEET: 305 x 305 x 75mm
Max. recommended load per set: 100kg

LARGE FEET: 450 x 450 x 100mm
Max. recommended load per set: 150kg

On larger, more complex projects, we are able to offer a pre-fabricated H Frame design service.
