Door Access Control Panel with Ethernet from ID-Me

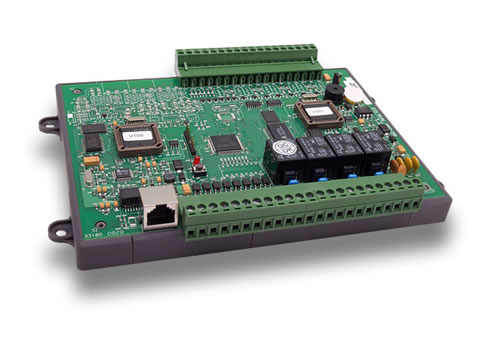

The RAC2000PN 2 door access control panel with Ethernet is a cost effective, yet feature rich access control solution for medium sized installations that require real time on site or remote operation, event recording, programmable duress, multiple access modes, anti-passback functions for entrance security, lift control and more. The RAC2000PN can support up to 15,000 card holders and 2 Wiegand readers. Operated with HAMS Management Software, the RAC2000PN is the ideal access control solution for multi-tenant apartments, hospitals, warehouses, offices and factories.

Features

• Easy to remove connector blocks in holders for easy installation and maintenance
• 10/100BaseT fast Ethernet communication interface to PC
• Optically coupled isolated sensors for door monitor, exit button and reader tamper
• 4 relay outputs for electronic lock (x 2) and alarm (x 2
• 8 inputs
• Up to 15,000 cardholder/events
• 128 time zones and schedules, 8 time conditional unlock door schedules, 100 holiday schedules per year
• Blacklist and 50 sets visitor card with configurable check digits, duration, usage time & frequency
• Anti-passback and Duress card/code setting
• ESD/Surge protection to protect devices & enhance communication
• RTC (Real Time Clock) and Watchdog function ensures accurate date/time and a system free from lockups
• Lift control with HDE100 elevator control panel
• Selectable 5/12VDC for card readers
