Axx-Series Thermal Imaging Cameras from Flir Systems Australia

micro etched tiles

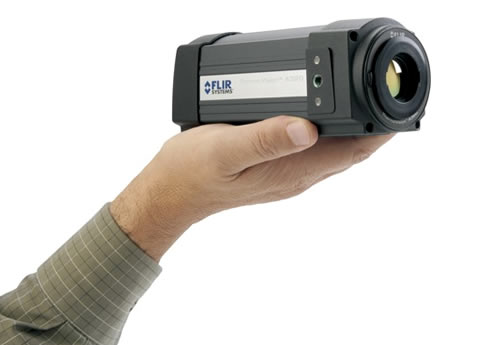

FLIR Systems introduces compact thermal imaging cameras for automation / process control applications

Thermal imaging cameras are used worldwide across a wide variety of industries to monitor continuous processes. Thermal imaging can easily collect information on product quality and/or production efficiency that is difficult or impossible to capture using conventional means such as thermocouples or visible light cameras.

The FLIR Axx-Series is the perfect solution for those applications that require the benefits of a thermal image but do not need exact temperature measurement. The FLIR Axx-Series cameras have features and functions that make them the natural choice for anyone who uses PC software to solve problems.

FLIR Axx-Series thermal imaging cameras: compact, complete and affordable.

All Axx-Series models are extremely compact. They can easily be integrated in a machine vision environment.

Different versions available

The FLIR A65 produces crisp thermal images of 640 x 512 pixels. Users that do not need this high image quality for their application can choose for the FLIR A35 which produces thermal images of 320 x 256 pixels, for the FLIR A15 which produces thermal images of 160 x 128 pixels or for the FLIR A5 which comes at an extremely affordable price and produces thermal images of 80 x 64 pixels.

The FLIR Axx-Series visualizes temperatures between -40°C and +550°C. Temperature differences as small as 50 mK become clearly visible on a crisp thermal image. Since the FLIR Axx-Series comes with Power over Ethernet, communication and power are supplied with only one cable.

Connection interfaces

The FLIR Axx-Series comes standard with GigE Vision™ compatibility. GigE Vision is a new camera interface standard developed using the Gigabit Ethernet communication protocol. GenIcam™ support is also provided. The goal of GenICam is to provide a generic programming interface for all types of cameras. Regardless of interface technology (GigE Vision, Camera Link, 1394 DCAM, etc.) or features implemented, the Application Programming Interface (API) will always be the same.

It is also possible to configure one camera to be master and others to be slave(s) for applications that call for more than one camera to cover the object or for stereoscopic applications.

Software included

The FLIR Axx-Series thermal imaging cameras work seamlessly together with FLIR Tools. It allows for viewing and analyzing thermal images and includes functions such as time versus temperature plots. Users that need more functionality and also want to be able to record images can optionally choose for FLIR Tools+.\

Read more: http://www.flir.com/cs/apac/en/view/?id=58228#ixzz2E2dBURgZ
