StoneClip Uni-Strut load fix certified by Sheehy & Partners
This is to certify that Sheehy & Partners have checked the design of
the mechanical fixing known as "Uni-Strut StoneClip." The Uni-Strut StoneClip parameters and design capacities
are summarised below.
Design Assumptions
The design has been based on the following;
- Uni-Strut StoneClip samples provided to the office.
- All components of the clip have been designed in accordance with AS 4673:2001 - "Cold-Formed
Stainless Steel Structures," AS 4600:1996 "Cold-Formed Steel Structures," other relevant codes, and
in accordance with widely accepted engineering principles.
- The load factor applied to Panel Dead Loads is 1.35 in accordance with AS 1170-0:2002
"Structural Design Actions." When combined with wind loading a Dead Load Factor of 1.2 is used.
- Where Uni-Strut StoneClip's are to resist lateral loads they have been designed for a strength limit state
pressure of 2.92 kPa. For lateral wind loadings this is equivalent to buildings in wind region B and
terrain category 2 and for a maximum cladding height of 10m in accordance with AS 1170-2:2002
"Structural Design Actions - Wind Actions."
- The Uni-Strut used has a steel thickness of 2.5mm.

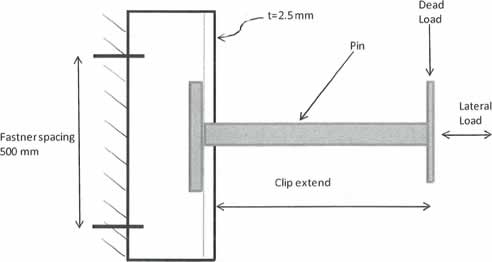

StoneClip Geometry

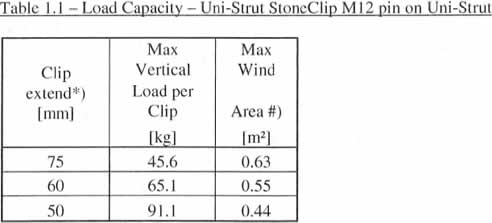

StoneClip Design Capacity Tables
The following tables are for Uni-Strut StoneClip's carrying a vertical and lateral loading. The Uni-Strut
is fixed to the substrate in accordance with StoneClip.com's specifications at a maximum spacing of 500mm
c/c as indicated in the above sketch. Fixings are to be selected in accordance with fixing manufacturer's
documentation.
* The clip is extend is the distance from the face of the Uni-Strut to the StoneClip disc.
# The wind area is the maximum area that one Uni-Strut StoneClip can resist based on the design wind
pressure of 2.92 kPa, as noted in the design assumptions. For other wind loading situations engineered
solutions based on the above tension capacity may provide increased / reduced wind areas.
Certification
If the Uni-Strut StoneClip installation is completed in accordance with the above design, the StoneClip.com specifications
and sound building practice, the "Uni-Strut StoneClip" mechanical fixing is considered to be structurally adequate.
This certificate does not cover the strength of the stone panel or the transfer of load from the stone panel to
the "Uni-Strut StoneClip."
The certificate does not cover the fixings connecting the Uni-Strut to the substrate or the substrate to which the
Uni-Strut is attached.
The undersigned is a Registered Practising Engineer in Queensland (RPEQ No. 8023).
S. McDonald
Sheehy & Partners Pty Ltd
Consulting Engineers
|
