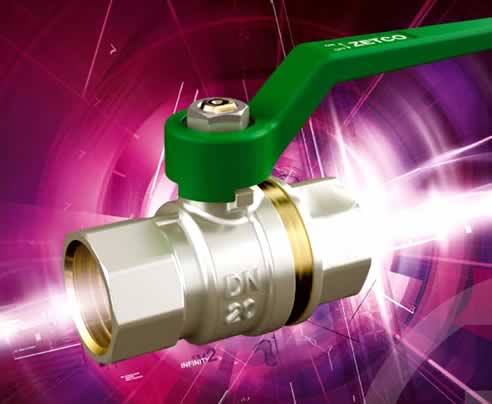

Series 1201 Zetco self-flushing ball valve

The next generation has arrived... Australia's first self-flushing ball valve

The unique self-flushing ball technology prevents the build-up of unwanted micro-organisms and foreign matter through constant flushing of the dead water zone inside the ball cavity.

Features

• Die cast aluminium handle for ease of operation.
• EPDM o-ring for perfect stem sealing.
• Nickel-plated finish for enhanced corrosion resistance.
• PTFE thrust washer for added sealing protection.
• Forged DZR brass body provides superior physical strength.
• Machined yellow brass threads prevent the build-up of bacteria.
• Perforated ball allows flushing of the ball cavity.

In a traditional ball valve, sediment and bacteria-carrying water can become trapped inside the ball cavity or 'dead water zone', allowing micro-organisms to proliferate. The European Norm 13828 requires that for ball valves, all inner surfaces in contact with water, including the entire ball cavity, are sufficiently flushed and thus rinsed out when in an open position. The self-flushing valve series, developed through rigorous testing procedures, is the only ball valve available in Australia that meets these requirements.

The self-flushing valve is ideal for;

• HVAC systems.
• Backflow prevention devices.
• Potable water installations.
